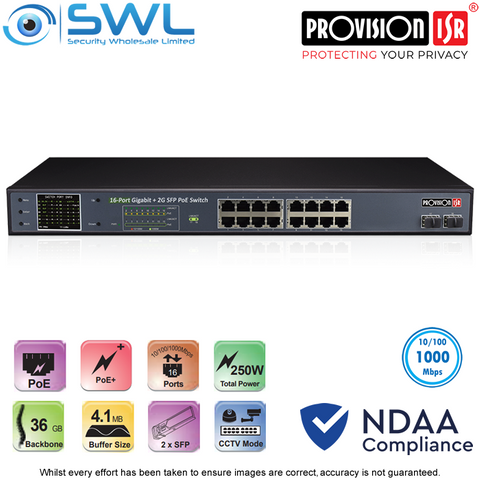

Provision-ISR PoES-16250GCL+2SFP: 16x Giga PoE Switch + 2x SFP (Rack) 250W, 250m
Description
The "PoES-16250GCL+2SFP" is a 10*10/100/1000Mbps rack mountable 16-port PoE + 2SFP ports Ethernet switch. The switch auto-detects connected IEEE802.3af/at compliant Powered Devices (PD) and supplies power to them. The PoE objective is to deploy independent power to places with no power source and outlets. The CCTV mode allows a camera connection up to a 250m distance
* PoE 16 Downlink / Uplink: All ports act as both 10/100/1000 Mbps
* Built in power supply. Supplied with NZ IEC Lead.
* 2 x SFP Ports
* 250 Watt (Avg:15.6W Max: 30W per Channel)
* Complies With IEEE802.3af/at Power Over Ethernet
* Transmission Distance: Up to 250m in CCTV mode
* Backbone Bandwidth - 36 Gbps
* Buffer size - 4.1Mbps
* Built-in Surge Protection
* Colour LCD Status Monitor
* Power Consumption - PoE On: 260W Max. / PoE Off: 10W Max
* Dimensions - 440mm x 232mm x 45mm
* Weight - 4Kg
* NDAA Compliant
** Recommendation: Very nice, solid rack mountable Gigabit PoE Switch. Any Port Uplink / Downlink.
* CCTV Mode:
- Up to 250m at 10Mbps
- VLAN function: No communication among downlink ports improves security and data transmisson efficiency
* Rack mount brackets included
Provision Switches
For full specification please upload .pdf below.
