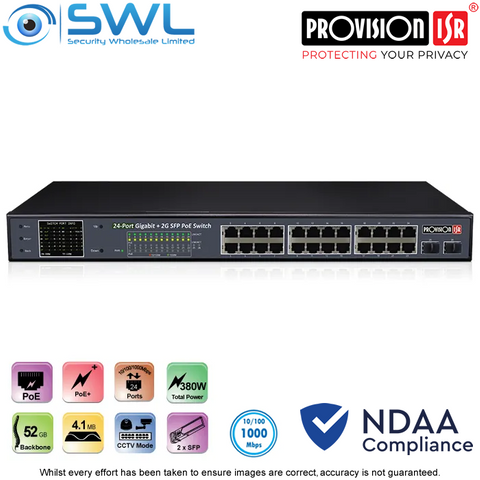

Provision-ISR POES-24370GCL+2SFP: 24x Gigabit PoE + 2x SFP 370W, 250m
Description
The PoES-24370GCL+2SFP is a 10*10/100/1000Mbps 24-port PoE + 2SFP ports Ethernet switch. The switch auto-detects connected IEEE802.3af/at compliant Powered Devices (PD) and supplies power to them. The PoE objective is to deploy independent power to places with no power source and outlets. The CCTV mode allows a camera
connection up to a 250m distance.
* 24 x Downlink / Uplink: All PoE ports act as both 10/ 100/ 1000
* 2x SFP Ports
* 370 Watt (Avg:15.4W Max: 30W per Channel)
* Internal Power Supply
* Complies With IEEE802.3af/at Power Over Ethernet
* Transmission Distance: Up to 100m
* Backbone Bandwidth - 52 Gbps
* Buffer size - 4.1Mbps
* Built-in Surge Protection
* Colour LCD Status Monitor
* Power Consumption - PoE On: 370W Max. / PoE Off: 10W Max
* Dimensions - 440mm x 232mm x 45mm
* Weight - 4.5Kg
* Rack mount brackets included
* NDAA Compliant
* CCTV Mode:
- Up to 250m at 10Mbps
- VLAN function: No communication among downlink ports improves security and data transmutation efficiency
Provision Switches
For full specification please upload .pdf below.
