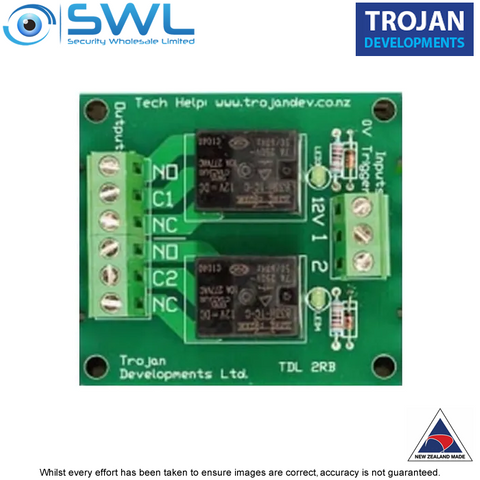

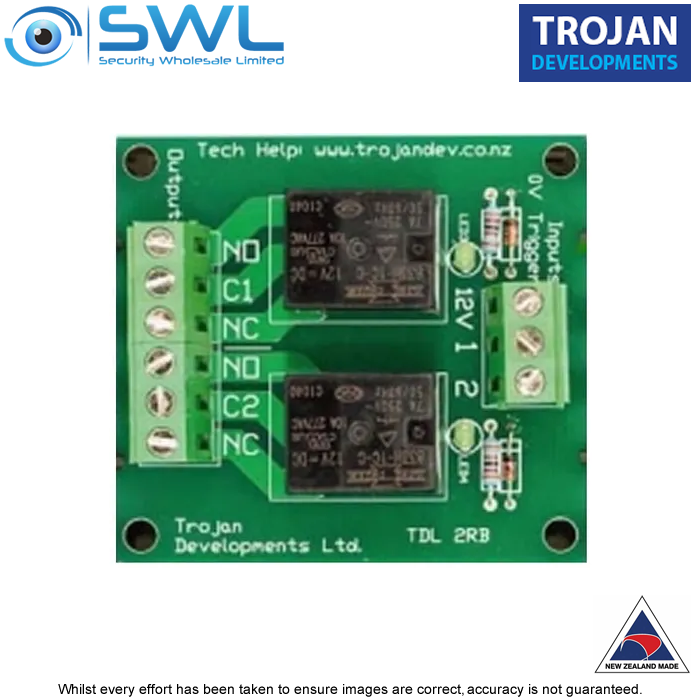

Trojan TDL 2RB – 2 Way Single Pole Relay Board 12VDC 8 Amp
Description
The 2 Way 8 Amp Relay Board has 2 x 12Vdc inputs that can switch 2 x 8 amp single pole double throw relays.
The board also fits the TDL Mounting Base which makes installation very easy and tidy as it allows all cables to be run behind the PCB and covered by a cover that also has an area for labeling. They can be connected together with other boards to make up a complete system of relays, fuses, timers etc…
The TDL Mounting Base also comes complete with fixing tape and screws.
Features:
* 2 Way Relay Board
* 12Vdc negative trigger inputs
* Single pole double throw power relays
* Contact rating: 8 amps resistive – 48Vdc/ac
* Quality rising clamp terminals (maximum cable size 2.5mm2)
* Dimensions: 55mm W x 60mm H x 23mm D
* This is a modular unit that can be used to switch a number of devices
* Designed to be used in an interface between the Access Control System and high current locks or other devices
* All contacts are rated at 8amps resistive up to 48Vdc
* There is also a diagnostic LEDs on each relay to indicate that the relay is operated
* The terminals are rising clamp type which will not damage the cables and can take up to a 2.5mm2 cable
* The unit is based on a standard foot print so that it can be mounted with other TDL boards on the optional TDL Mounting Base
Another Great New Zealand Product by Trojan Developments
