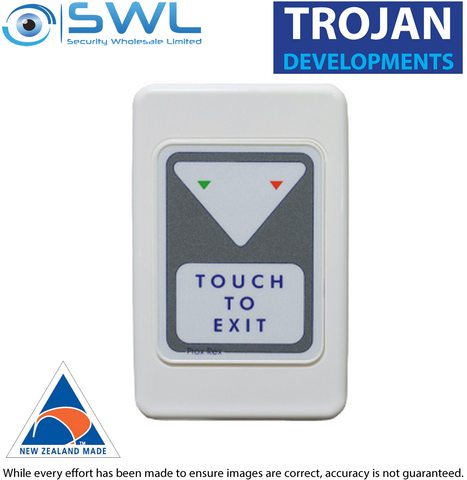

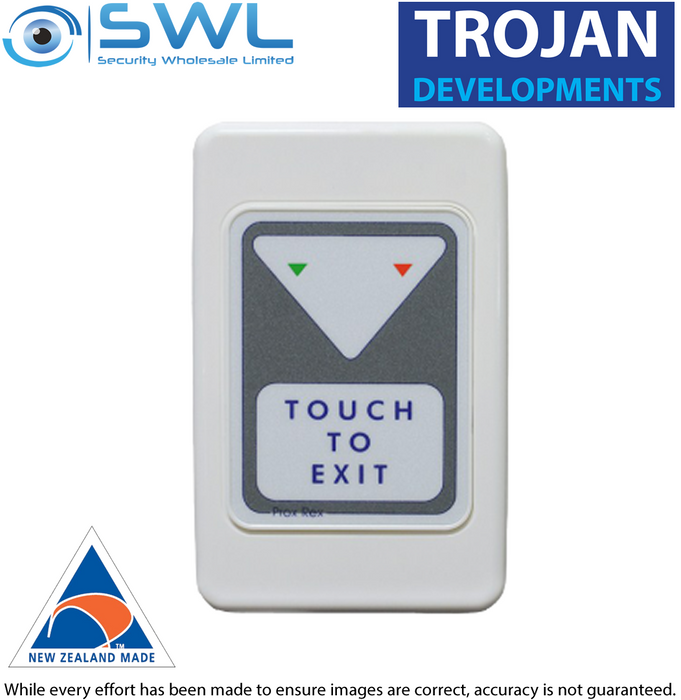

Trojan Prox Rex - Touch To Exit Unit
Description
The Prox Rex® (Touch to Exit) electronic switch is a low cost, touch sensitive switch unit designed for use with Access Control Systems and is an ideal replacement for conventional push buttons, door release buttons, call switches, etc.
Features:
* Requires only the touch of a finger to activate, making it perfect for fast and easy egress and an advantage for the elderly and disabled.
* Vandal-Resistant – all components are behind the plate.
* Perfect replacement for door release buttons that are in high usage areas.
* No moving parts.
* Ideal for areas where infection control is important.
* Easy to clean and fade resistant.
* Two LED indicators provide visual confirmation for: Red for heartbeat and Green for operated.
* Built-in sounder to provide audible confirmation of operation.
Specifications:
* Single gang profile fits standard electrical flush box
* Power requirements 9 to 16Vdc - 50mA at 13.6 Vdc
* 2 sets of clean N/O and N/C outputs
* The contacts are rated at 1 AMP 30Vdc
* The switch is fully self-calibrating
* The faceplate will not deteriorate over time and is easily cleaned
* C-Tick, RCM, RoHS Certified
Weatherproof Accessory:
* Clear Polycarb Protective Cover: WEC140 57250
See specification sheet below.
Please sign in to your SWL account to access installer manual.
