Trojan ECU Em Rex Cover - Unmonitored
Description

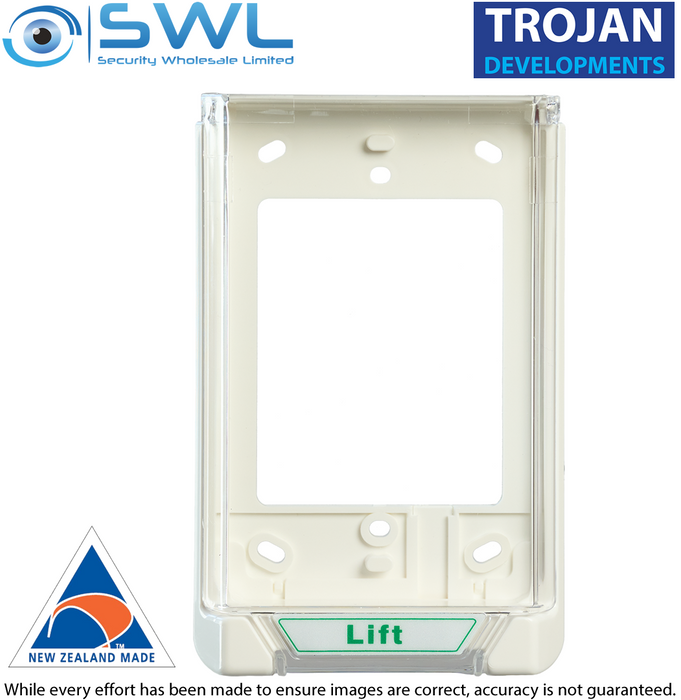

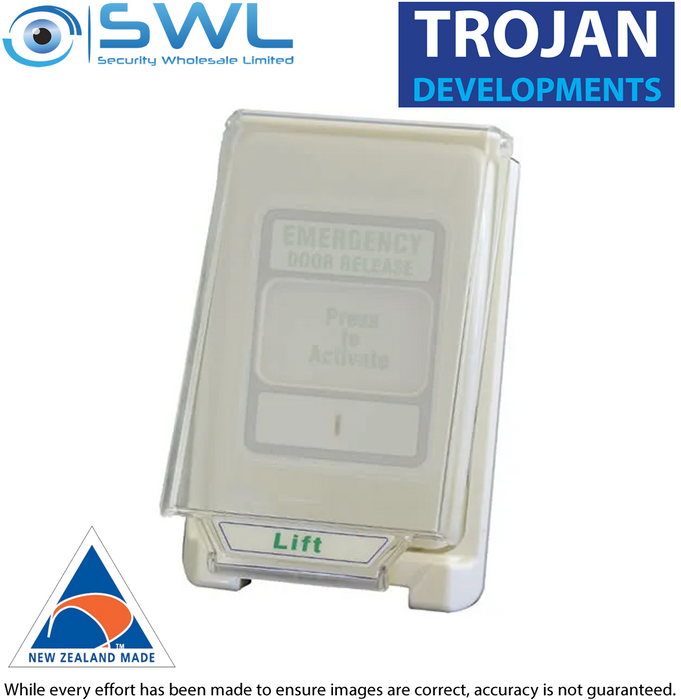

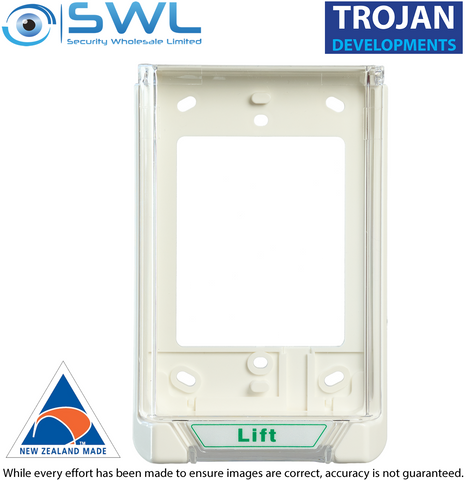

Cover for use with the Em Rex Unit
The Em Rex Cover is to be used with the Em Rex unit to deter unintended / malicious activation of the unit when it is installed in a public area. The device is passive and has no electronics that could fail and cause the unit not to operate. The Cover has two sets of outputs, which are used to monitor the operation of the cover being lifted.
One set of contacts connects to the piezo (buzzer) on the Em Rex unit and the second to the Access Control System for monitoring.
The cover is designed to clip into place when closed so as to make the operation of it a deliberate action as it will not lift without reasonable force. This will prevent any accidental or unintended operation of it.
The Em Rex unit fits into the base of the cover before both parts are fixed to the wall, preventing it being removed without unscrewing it from the wall.
Features
* This is designed to complement the Em Rex unit and comply with building codes for emergency egress
* The cover is made of polycarbonate so as to withstand long term operation without any deterioration.
* There are also two built in reed switches that cannot be accessed or compromised.
* The unit is weather proof. It can be located in external locations provided that the unit is sealed against the wall.
* Minimal moving parts.
* Text and graphics are protected by a Lexan overlay (easy to clean and fade resistant)
Specifications
* The unit is 92mm x 153mm and fits a standard electrical flush box
See specification sheet below.
