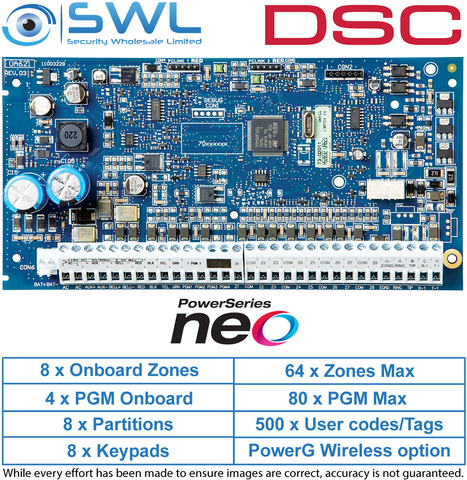

DSC Neo: HS2064 Alarm Panel - 8 to 64 Zone PCB Only
Description
DSC Neo: HS2064E Alarm Panel - 8 to 64 Zone PCB Only
* 8 On-board zones
* Expandable to 64 wireless & hardwired zones total with HSM2108
* 8 Partitions
* 4 PGM outputs: Expandable to 80 (HSM2204, HSM2208)
* Connect up to 8 supervised keypads with keypad zones
* 500-Event buffer
* SWL stocks 'Extended' memory version - 500 User codes + Master Code, Mini Proximity Tags 13310
* Expandable to 8 Neo wireless sirens 13415
* Expandable to 3 power supply modules using HSM2300
Expansion
The model supports 64 hardwired or wireless zones. The controller is expandable to 64 zones by adding 7x HSM2108 hardwired 8 zone expansion modules or an HSM2HOST4 wireless expansion module. They are connected to the controller via a supervised 4-wire power / communication bus.
Please see specifications, user manual and further Neo accessories below.
Please sign in to your SWL account to access installer manual.
