DSC Neo: HSM2204 High Current 4-Way Output Module
Stock Code:
13360
POA
Description

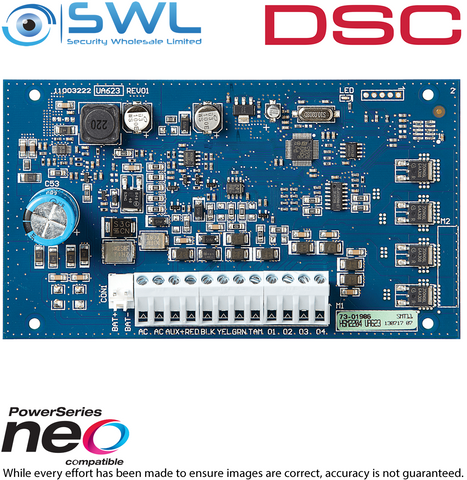

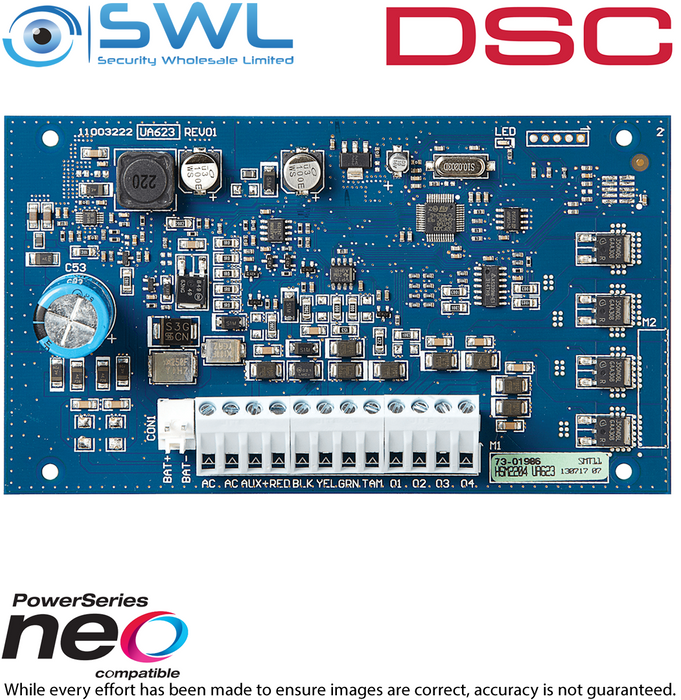

DSC Neo: HSM2204 High Current 4 Way Output Module
The HSM2204 is a dual-purpose module providing programmable outputs for controlling external devices & an additional +12V 1.0 A of additional power.
* Connect up to 4 modules per system
* Fully supervised for AC failure, low battery and AUX failure
* 4 programmable high current voltage outputs: rated at 1 Amp @ 12 VDC
* Output #1 can be used as a supervised bell output
* Transformer Rating: 16.5Vac, 40VA (11190)
* Dimensions: 145mm x 83mm
See specification sheet below for Neo family expansion modules.
