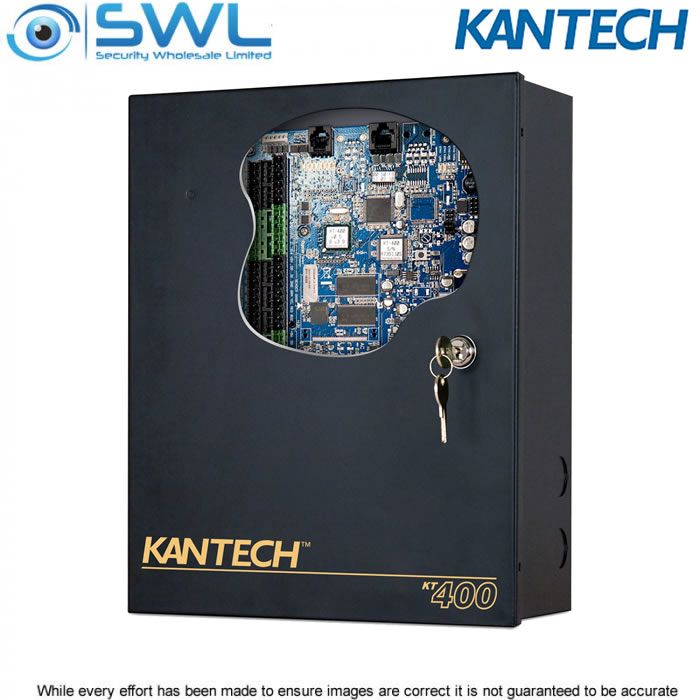

Kantech KT-400: 4 Door Controller (IP Ready), Accessory Kit, Cabinet c/w Lock
Description
* 4 Door Controller (IP ready)
* Accessory Kit (KT-400-ACC)
* Metal Cabinet (KT-400-CAB)
* Cabinet Lock (KT-Lock)
NB: Power supply not supplied. Please check with SWL Tech on your requirement.
KT-400 is an Ethernet-ready four-door controller that provides 128-bit AES encrypted communication with the EntraPass Security Software and is a highly secure solution for any security-conscious business. KT-400 can easily be integrated into an existing EntraPass system with other Kantech controllers (KT-1 and KT-300), or basic door security without the need to connect to a host system when in Standalone Mode – providing the foundation for a brand new security installation.
With an onboard Ethernet port, an external IP device isn't required to connect to the network. The onboard port is dual-sensing, which means the system senses whether the connection is 10Base-T or 100Base-T and adjusts automatically for faster connectivity. KT-400 manages network polling and communicates with the EntraPass Gateway only when an event has occurred. Communication integrity is ensured through a heartbeat signal which is sent at regular intervals to the EntraPass system. This asynchronous communication significantly reduces the amount of bandwidth required to manage the access control system over the network.
Features:
* Configure & manage 4 doors using a simple embedded web browser.
* No software to purchase and install (Standalone Mode, KT-400 v1)
* Intuitive configuration wizard for quick set up (Standalone Mode, KT-400 v1)
* 128-bit AES-encrypted Ethernet communication + EntraPass ensure a high degree of network security
* 100k cards capacity and provides up to 20k concurrent events in stand-alone mode
* 256 outputs (four onboard) provide scalability
* Communicates with EntraPass Gateway only when an event has occurred, ensuring low network bandwidth consumption
* Verify and configure IP settings with a built-in web configuration page
* Supervised door lock outputs with internal or external power supply
* LEDs provide important controller status and diagnostic information
* Additional battery supervision and monitoring help ensure controller functionality
* Compatible with EntraPass Security Management Software v6.02 or higher
Mag Locks & Brackets
For high quality (tried and tested), cost-effective ONETOP lock solutions click HERE
For high quality (tried and tested), specified ASSA ABLOY lock solutions start HERE
See specification sheet below.
Please sign in to your SWL account to access installer manual.
