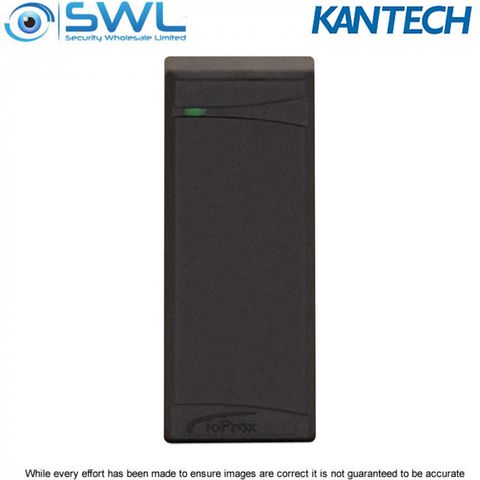

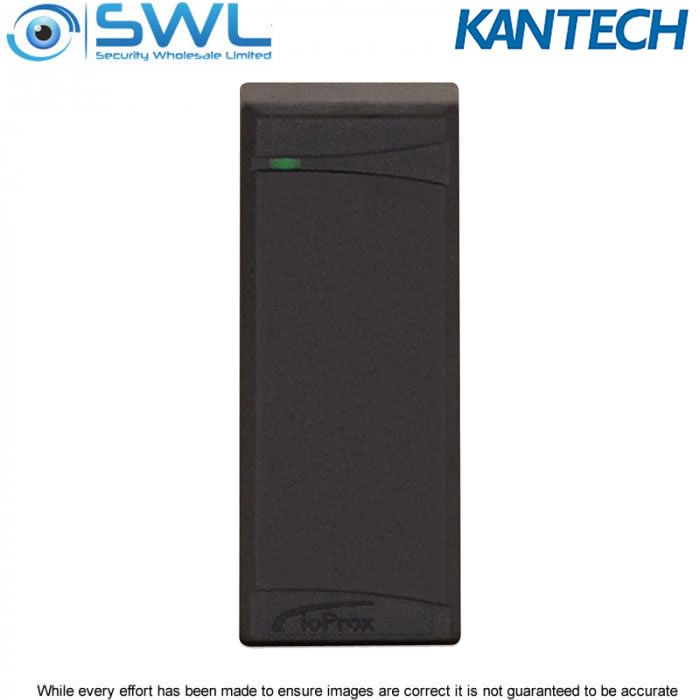

Kantech P225XSF ioProx Reader: XSF, Mullion, Up to 16.5cm Read Range
Description
ioProx Reader, P225XSF, Mullion Size, up to 16.5cm read Range, Black
ioProx readers easily meet the demands of any application (weatherised and vandal-resistent).
Compatible with dual-encoded 26-bit Wiegand and Kantech Extended Secure Format (XSF) proximity cards, these readers seamlessly Integrate with access control systems including Kantech door controllers, Kantech Telephone Entry System (KTES) & EntraPass software.
ioProx cards and tags feature proven, reliable technology that seamlessly integrates with ioProx readers. Cards are available in a variety of shapes/ materials and can be attached to a key ring, badge clip or lanyard. Disk shaped prox tags are also available and can be attached to any non-metallic surface. IoProx cards are dual encoded with both 26-bit Wiegand and XSF and are compatible with ioProx readers.
Features:
* Compatible with dual-encoded 26-bit Wiegand & Kantech XSF prox cards
* Digital Signal Processing (DSP) ensures quick & reliable card reading
* Readers have weatherproof, vandal-resistant design for indoor/ outdoor applications
* Some readers offer two-factor verification (PIN plus card)
* Bicolor reader LED & piezoelectric buzzer
* Cards are dual encoded with 26-bit Wiegand & XSF
* High security XSF offers over 4 billion unique code combinations
* Some cards are suitable for dye sublimation printing for photo ID badges
* Keytag is resistant to cracking/breaking
Specification: P225XSF Mullion
* Typical read range: Up to 16.5cm
* Input voltage: 4.5 to 14VDC
* Current DC maximum: 45mA
* Dimensions: 114.3mm x 44.5mm x 21.3mm
* Weight: 90g
* Colour: Black
* Transmit frequency: 125 kHz
* LED indicator: Bicolor (red and green)
* Piezo buzzer: Integrated
* Operating temperature -35oC to 65oC
* Max. cable distance from controller: 300m 12VDC
* Reader Power 12VDC
* Cabling:3 twisted pairs, #22 AWG, unshielded, Belden ref #8742
* Tamper Switch: Optional P-TAMP
See ioProx Range Specification sheet below.
