Kantech P325XSF ioProx Reader: XSF, Single-Gang, Up to 20.5cm Read Range
Description

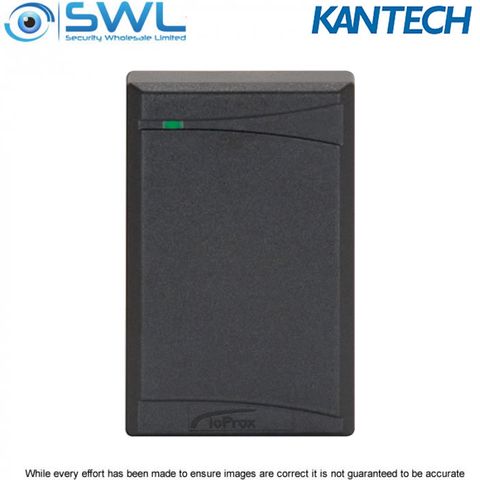

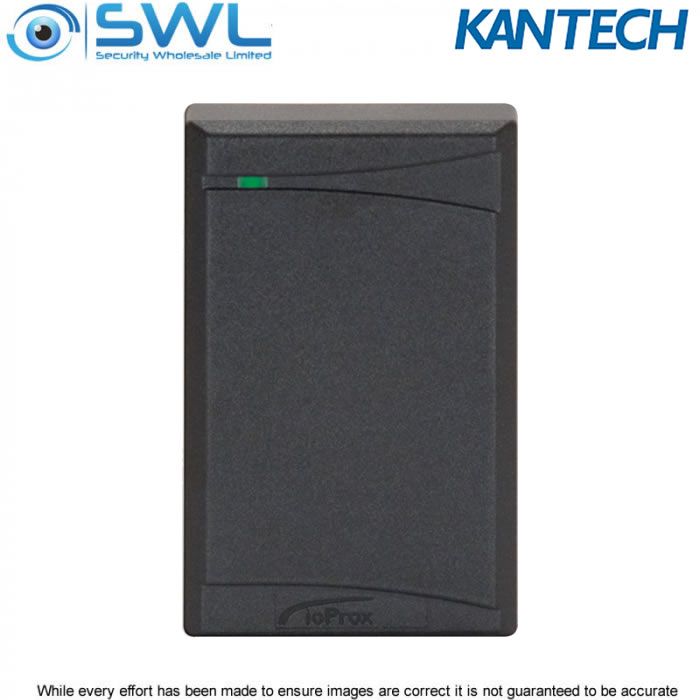

Kantech P325XSF ioProx Reader, XSF, Single-Gang, Up to 20.5cm Read Range, Black
ioProx Proximity Card Readers And Cards
ioProx readers easily meet the demands of any application.
Attractive, compact, weatherized & vandal-resistant, readers are suitable for installation in a variety of environments.
Compatible with dual-encoded 26-bit Wiegand & Kantech Extended Secure Format (XSF) proximity cards, readers seamlessly integrate with access control systems including Kantech door controllers, Kantech Telephone Entry System (KTES) & EntraPass software.
ioProx cards & tags feature proven, reliable technology to seamlessly integrate with ioProx readers.
Cards are available in a variety of shapes/ materials and can be attached to a key ring, badge clip or lanyard.
Disk shaped prox tags are available to be attached to any non-metallic surface.
ioProx cards are dual encoded with both 26-bit Wiegand & XSF to be compatible with ioProx readers.
Features:
* Compatible with dual-encoded 26-bit Wiegand and Kantech XSF proximity cards
* Digital Signal Processing (DSP) ensures quick and reliable card reading
* Readers are weatherproof / vandal-resistant for indoor & outdoor applications
* Some readers offer two-factor verification (PIN plus card)
* Bicolor reader LED and piezoelectric buzzer
* Cards are dual encoded with 26-bit Wiegand and XSF
* High security XSF offers over 4 billion unique code combinations
* Some cards are suitable for dye sublimation printing for photo ID badges
* Keytag is resistant to cracking/ breaking
Specification: P325KPXSF Single Gang
* Typical read range: Up to 20.5cm
* Input voltage: 4.5 to 14VDC
* Current DC maximum: 45mA
* Dimensions: 115.6mm x 71.1mm x 21.3mm
* Weight: 150g
* Colour: Black
* Transmit frequency: 125kHz
* LED indicator: Bicolor (red and green)
* Piezo buzzer: Integrated
* Operating temperature -35oC to 65oC
* Max. Cable distance from controller: 300m 12 VDC
* Reader Power 12 VDC
* Cabling: 3 twisted pairs, #22 AWG, unshielded, Belden ref #8742
* Tamper Switch: Optional P-TAMP
See ioProx Range Specification sheet below.
Please sign in to your SWL account to access installer manual.
