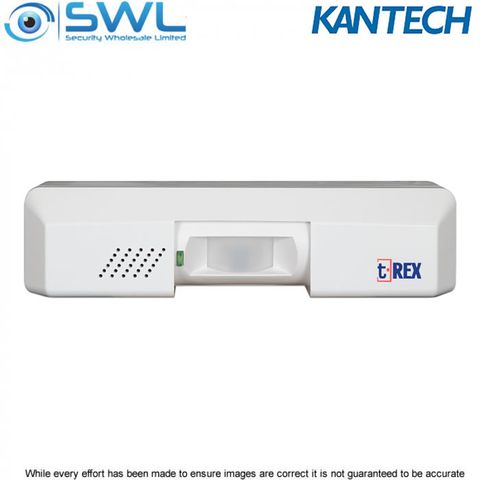

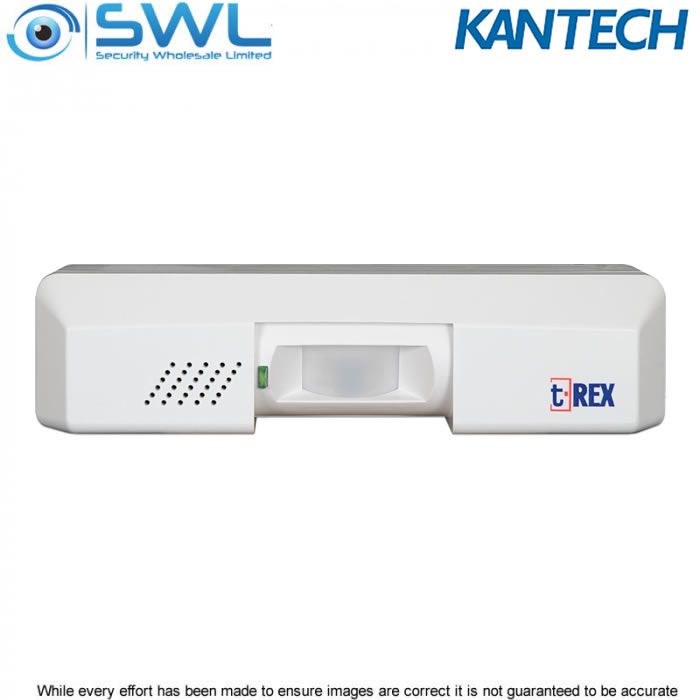

Kantech T.REX-XL: T.Rex Request to Exit Detector, w/ Tamper, Piezo & Timer, Wh
Description
T. Rex Exit Detector with Tamper, Piezo & Timer in White.
The T-Rex is a sophisticated and cost-effective request to exit device for all access control applications and an alternative to installing an exit button. Outstanding innovations such as X-Y Targeting and Digital Signal Processing (DSP) implementation make the T.Rex the fastest and most reliable exit detector on the market.
Features:
* Zone of detection easily adjustable with pinpoint accuracy
* X-Y Targeting targets a specific area of detection
* Unlocks or shunts door automatically
* Hands-free, no buttons to push
* Integrated 90 dB local door alarm sounder independently controlled by access panel
* Infrared detection coupled with DSP prevents false “Door Forced Open” alarms
Specification:
* Detector Type: Passive infrared
* Filter Technology: Digital Signal Processing (DSP)
* Detector Lens: Curtain-type Fresnel lens
* Detection Range: Narrow Targeting Area: 3m (10 ft)
* Whole Body: 6 m (20 ft)
* Piezo Buzzer: 90 dB at 28V DC, 5-28V DC, 20 mA (XL & XL2 only)
* Main Relay Contacts: SPDT, 1A max @ 30V DC max
* Main Relay Timer: Adjustable 0.5 to 60 seconds
* Main Relay Recycle Timer: Fixed, 0.75 seconds off
* Lock Control Relay Available on LT2 and XL2 models only, solid-state relay, N.C., 2A max @ 30V DC, timed at 2 seconds fixed
* Tamper Switch: N.C., 100 mA max @ 30V DC max
* Indicator Light: Red/Green LED
* Mounting: Optional back plate available for mounting the T.Rex on a standard single-gang electrical box
