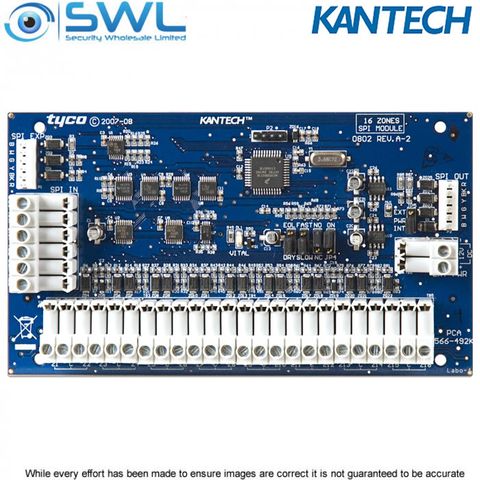

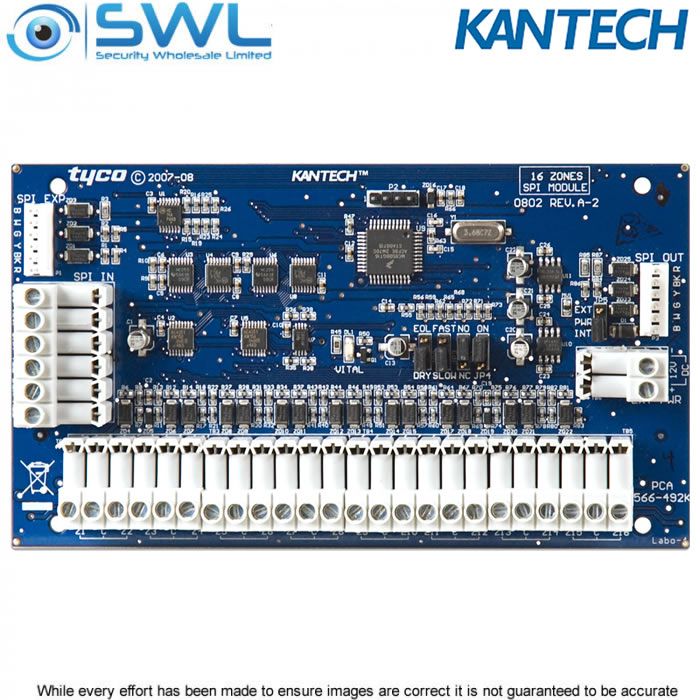

Kantech KT-MOD-INP16: KT-400 Expansion Module 16-Z INPUT c/w SPI Cable
Description
The KT-MOD-INP16 is an input module that adds up to 16 zones to the KT-400 controller.
The module supports daisy chaining; you can interconnect up to 15 KT-MOD-INP16 modules for a total of 240 external inputs per KT-400. Adding the 16 onboard inputs of the KT-400 gives a total of 256 inputs per KT-400. Combining input and output expansion modules gives the flexibility to connect up to 256 inputs and 256 outputs.
* Note 1: The KT-400 SPI port maximum current draw is 500mA when the 12V AUX terminals are not used.
* Note 2: External power supply (12 VDC, 2 A) is required when total current draw exceeds 500mA on SPI Port.
Specifications
• Maximum Current Draw: up to 40 mA per module
• Supports single end-of-line (5.6 KO) resistor
- Double end-of-line resistor
- No end-of-line (DRY) zone loops
• Supports Normally Closed (NC) and Normally Open (NO) contacts
• The C (Common) terminal is GND
• Input change with a debouncing of 500ms (Slow) or 150ms (Fast)
• Report conditions per input:
- SECURE or ALARM in single end-of-line/ no end-of-line zone loops
- 2 additional conditions TAMPER and TROUBLE in double end-of-line zone loops
• Can be used for contact or elevator input
• Connects to output modules KT-MOD-REL8 & KT-MOD-OUT16 through its SPI EXP expansion port
• Operating Temperature: -10C to +55C
• Maximum Humidity: 93% (non condensing)
• IP Class 3X, IK Rating 04,(when mounted in Kantech cabinet).
Please sign in to your SWL account to access installer manual.
