Kantech KT-MOD-OUT16: KT-400 Expansion Module 16-Zone OUTPUT c/w SPI Cable
Description

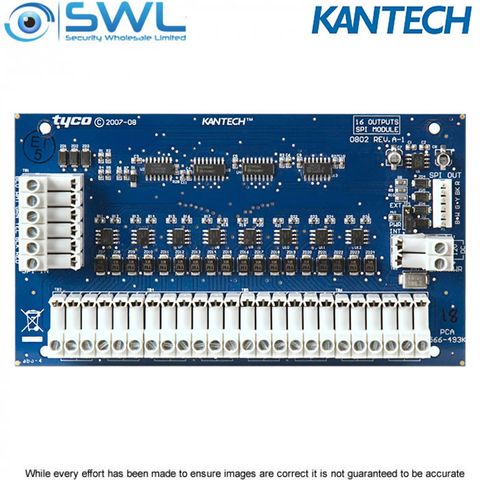

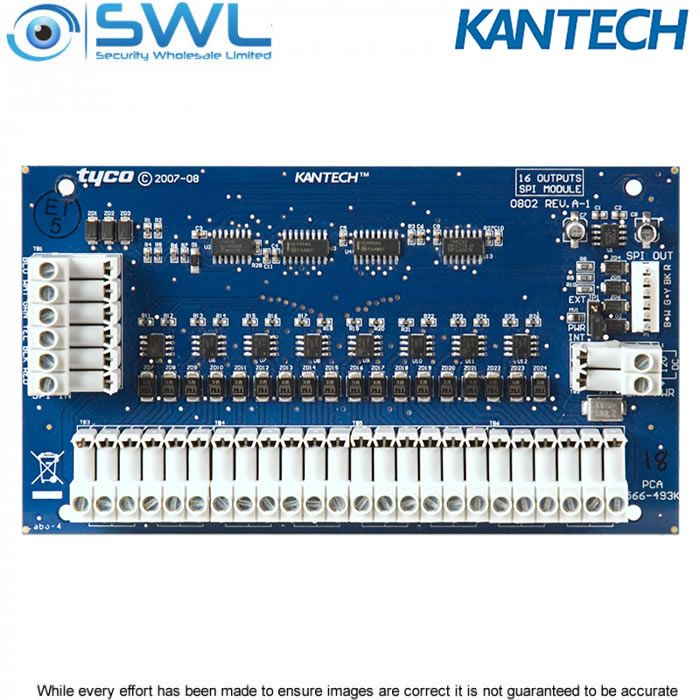

KT-400 Expansion Module 16-OUTPUT (KT-MOD-OUT16) with SPI Cable (KT-MOD-SPI-16)
Introduction
The KT-MOD-OUT16 is a 16 zones output module. It can be used for elevator access control (may require additional hardware). The module supports daisy chaining; you can interconnect up to 16 KT-MOD-OUT16 modules for a total of 256 external outputs per KT-400. You can mix relays and outputs in the same SPI group, up to 256 outputs.
Note 1: The KT-400 SPI port maximum current draw, when the 12V AUX terminals are not used, is 500 mA.
Note 2: External power supply (12 VDC, 2 Amps) is required when the total current draw exceeds 500mA on the SPI Port.
Note 3: There are already 4 relays available on the KT-400.
Make sure to check the relays number assignments to prevent redundancy unless it has been planned on purpose.
KT-MOD-OUT16 Specifications
• Maximum Current draw: up to 750 mA per module
• Connects to the KT-400 via the 6-pin SPI connector
• 16 outputs low current module, 5 to 24 VDC, 4 to 750 mA
• Can be used for elevator access control or general output
• Can be mixed with output module KT-MOD-REL8 in the same SPI group
• Operating Temperature: -10C to +55C
• Maximum Humidity: 93%
• IP Class 3X, IK04 (when mounted in Kantech cabinet)
Please sign in to your SWL account to access installer manual.
