Lockwood 5782EL: 12-24VDC Electric Mortice (Primary) Lock Both Face Plates 30mm
Description

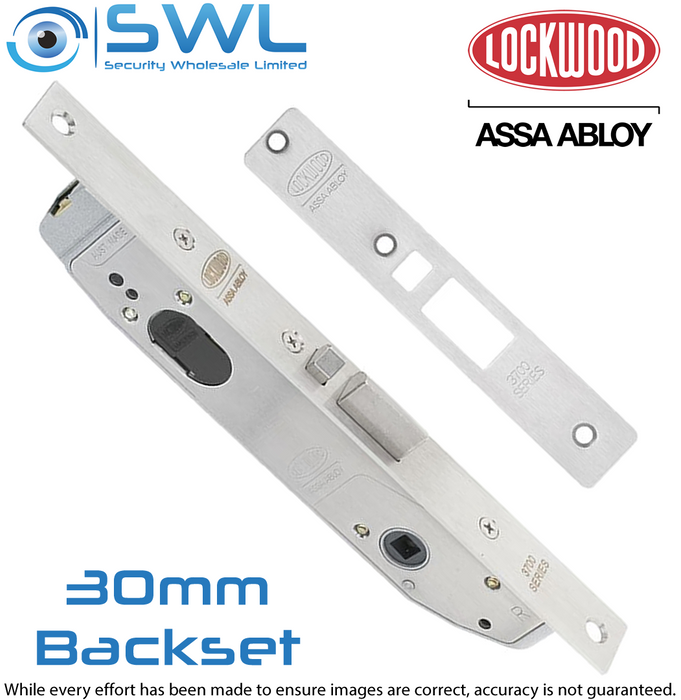

Lockwood 5782EL: 12-24VDC Electric Mortice (Primary) Lock Both Face Plates 30mm
Manufacturer's Part Code: 5782ELNZSS
**NB. Comes with CAM. If a cylinder reis quired please add Part No. 60744**
The Selector 5782EL is a high performance electric mortice lock for narrow stile hinged doors. Designed to meet the varying requirements of
commercial applications the lock is the ideal compliment to high security access control systems and a great locking product to use with intercoms, keypads and key switches due to the intuitive operation of a locked or unlocked handle. These locks comply with building regulations for single action escape doors.
The 5782EL is a fully field configurable primary electric mortice lock providing significant benefit over previous models. The unique motor driven operation, high security monitoring capabilities and on board door status LEDs provides a significant advancement in the specification,
distribution, installation and servicing of electric mortice locks.
Key Features:
* Variable voltage from 9 – 28VDC
* Simple in field selection of power to lock or power to open
* Full range of monitoring including Request to Exit (REX), Deadlatch,Door position, Key Override Monitoring (KOM) and locked status
* On board door status LEDs improves installation and reliability
* Unique functions for reader in / reader out applications which allows external side to fail securely while internal side fails safe allowing free egress escape
* Motor driven providing lower power usage in power to lock applications
* 3 wire control means the power can be supplied independent to the locking control signal making the lock less susceptible to issues
associated with voltage drop across long wiring runs
Specifications 30mm Backset:
* Voltage 9 – 28VDC
* Current - 300mA MAX (20mA continuous if LEDs are activated)
* Monitoring - Key override (NC), Deadlatch (NC), Door Position (NC), REX (NO / NC) and Lock Status (NC) - all 30VDC 50mA
* MAX Environment Operational temperature range - -15°C to +60°C
* Case/Cover - High purity zinc alloy material cases with stainless steel chassis plates. Stainless steel faceplates provided as standard
* Backset - 30mm
* Latch Bolts - 15mm stainless steel construction
* Door Clearance - 3 - 6.5 mm
* Door thickness Standard applications - 32 to 50mm
* Extension kits available
* Cylinder - Standard Lockwood oval shaped cylinders can provide mechancial key override. Key retracts bolt when used with either X7 cam or V cam. Locks are supplied with X7 cams included.
* Cabling - Supplied with 3.6m cable with 12 pin connector and moisture deflecting boot supplied with each lock
* Recommended cabling -18AWG (0.82mm2) cable runs up to 30m
* Furniture - Compatible with Lockwood 4800 and 5800 Series Brass Door Furniture . This includes function 11 (cylinder, lever and lens) and function 12 (lever and lense) which are specifically designed to work with this lock to allow the onboard LEDs to illuminate door status.
* Finishes - Satin Stainless Steel (SS)
See 3782EL range brochure below.
