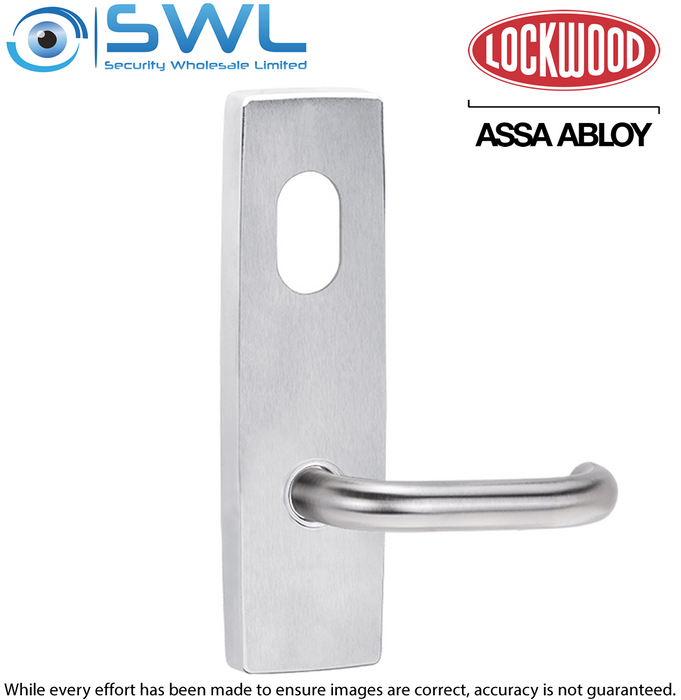

Lockwood L1801/70SC: Square End External Plate With Cylinder Hole & 70 Lever
Description
Lockwood: L1801/70SC: 1801 Square End External Plate With Cylinder Hole & 70 Lever
1800 Series Square End Plate Furniture
Application:
Designed for use with Lockwood Synergy Mortice Locks and Latches.
Features and Specifications:
* Handing - Plates are not handed; lever may be reversed by removing stop screw, except for handed levers as shown in the ordering
procedure.
* Dimensions - 166mm x 48mm x 12mm
* Fixing - Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.
* Door Thickness - External plates are supplied with fixing screws to suit door thickness between 32 and 50mm.
For thicker doors, please refer to the brass furniture thicker doors page at end of catalogue.
* Turn Functions - Turn functions feature a unique mechanism that automatically adjusts the length of the tail bar to suit a particular door thickness.
* Finishes - Satin Chrome Brushed (SC)
See 1800 Series .pdf below.
