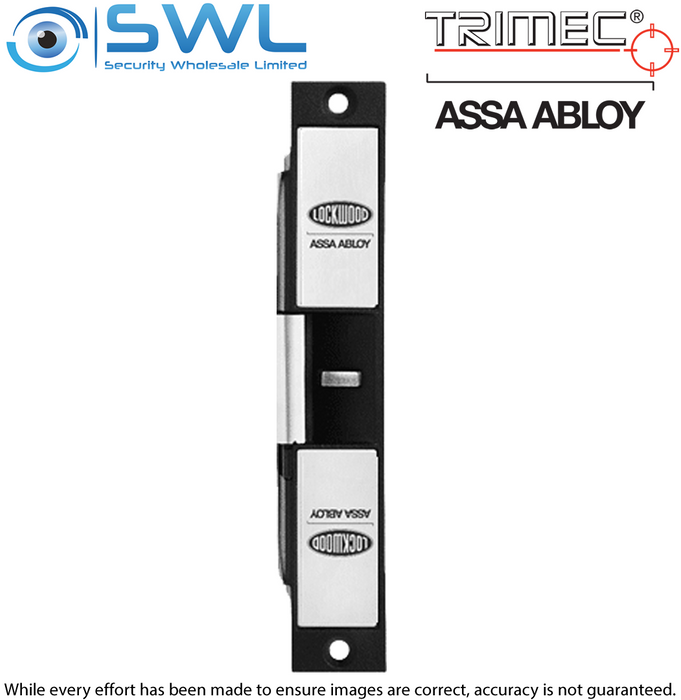

Trimec ES9000 (119001-010): 12-30VDC W/Res Preload Multi Function Strike No Lip
Description
Trimec ES9000 (119001-010):12-30VDC Weather Resistant Preload Multi Function Strike - No Lip
This product allows you to add a custom lip to the ES9000 (25mm & 50mm). Product code 60186 comes with an integral 15mm lip.
ES9000 Multi Function Strike
The ES9000 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper. Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use.
Standard features include multi voltage 10 - 30V DC and field changeable settings from fail safe to fail secure.
Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.
ES9000 Specifications:
* Voltage - 10 – 30Vdc
* Current - 250mA @12Vdc – 130mA @24v DC
* Solenoids - Solenoid rated for continuous use
* Electrical protection - Polarity and back EMF protected
* Monitoring Solenoid Monitor – 1 amp NO/NC microswitch
* Door / Latch Monitor – 1 Amp NO/NC microswitch
* Holding force - 1300kg static strength rating
* Endurance I - 1,200,000 cycles endurance rating @ 25kg pre-load
* Endurance II - 2,500,000 cycles general durability without pre-load conditions
* Latching - Suitable for 15mm latch with 3mm door gap
* Environment Operational temperature range - - 20C to +60C
* Body - Solid Stainless Steel Construction
* Keeper - Stainless Steel
Specification Statement
The electric strike should be fully monitored and have independent door / latch and solenoid monitor switches. Holding force for the strike
should be not less than 1300kg. Where Power to Lock and Power to Open functions may be required in the same building, a single electric strike should be interchangeable from either fail safe or fail secure from the rear of the strike. The electric strike should not consume current
greater than 250mA @ 12Vdc and have a solenoid rated for continuous use. A fire rating not less than 4 hours is required where applicable. The strike must be capable of operating with up to 25kg of pre-load pressure applied to the keeper, be tested to 2.5 million operations and carry a minimum warranty of 5 years.
