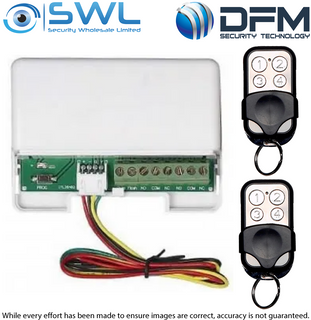

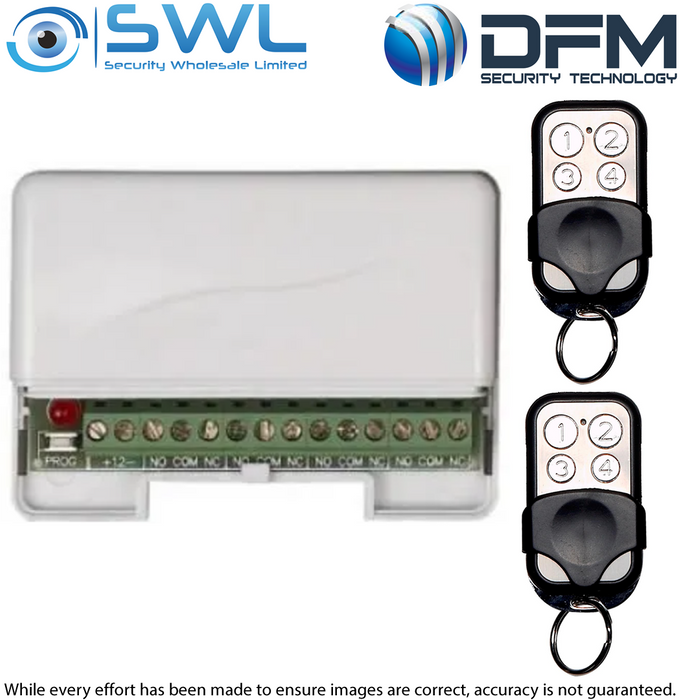

Activor 'Stand Alone' Kit: Receiver (RSR-01) c/w 4x Relays, 2x 4 Button Remotes
Stock Code:
32961
POA
Description
Breathe user-friendly life and functionality back into that unsupported panel !
Features:
* 4 on board relay outputs; SPDT* Outputs 3 & 4 can be easily programmed for momentary, toggle or delay operation
* Keeloq rolling code enhances security
* Standard capacity of 25 remotes
* Can easily delete a single remote
* Mounting plate provided for quick and easy installation
Receiver Features:
* Output: 4-relay outputs* Relay rating: SPDT; 1A 24VDC/120VAC
* Operating voltage: 9-15VDC
* Current: 8-40mA
* Capacity: 25 as standard (500 available on request)
* Receiver dimensions: 90mm ( L) x 60mm (W) x 28mm ( H)
Remote Features:
* 433.92 MHz Keeloq rolling code: 4.3 billion combinations* RF range: 100m (open air)
* Current: <1uA standby; 12mA operating
* Transmitting power: <10mW
* Power: 2 x 3VDC Lithium batteries CR2032: 07204
* Battery Life: 4 years under normal operating conditions !
Stock Level:
In Stock
