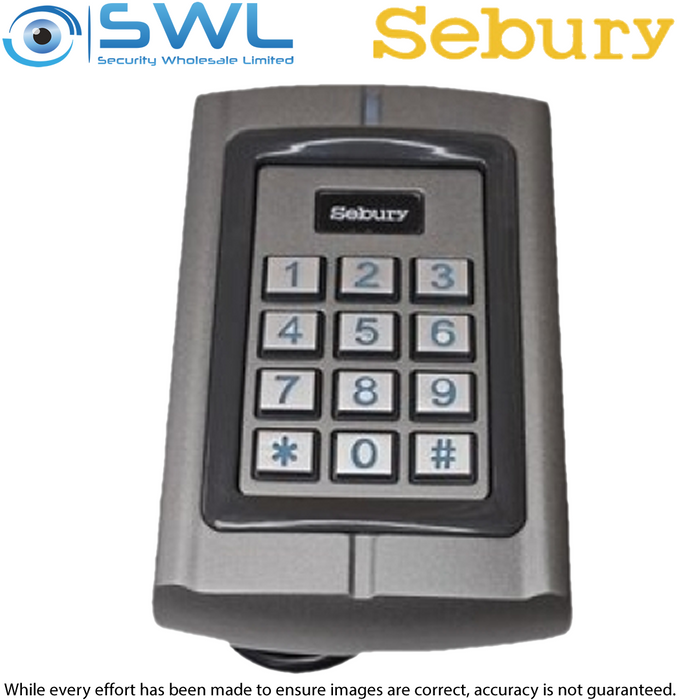

Sebury W3-A Two Door Access Control Keypad: RFID, 1200 Users
Stock Code:
57113
POA
Description
This Access control is anti-vandal and waterproof design. It support PIN and 125KHZ EM card, 3 access modes optional. It usually installed on the courtyard, bank, prison etc. where need hign level security. And also can be used for automatic gate by its relay built-in.
Features:
* Operating Voltage: 12-18V AC/12-24V DC* Up to 1,200 users (Zone 1:1,100 users & Zone 2:100 users)
* Support 3 Modes Access: Card, PIN, Card+PIN
* Card Type: 125KHz EM
* Backlight keypad
* Two-relay operation
* Pulse mode, toggle mode
* Adjustable Door Relay Time: 1-99s
* Static Current: =35mA
* Card Read Rang: 3-6cm
* Reader Induction Time: =0.1s
* Operating Temperature: -40°~60°
* Operating Humidity: 0-95%
* Lock Output Load: 1A
* Alarm Output Load: 3A
* Antistatic: 15KV
* Environment: Conforms to IP65
* Wiring Length: 90-100cm
* Dimension: 128mm× 82mm× 28mm
********** DSC Tags that are compatible with this keypad 13310 **********
