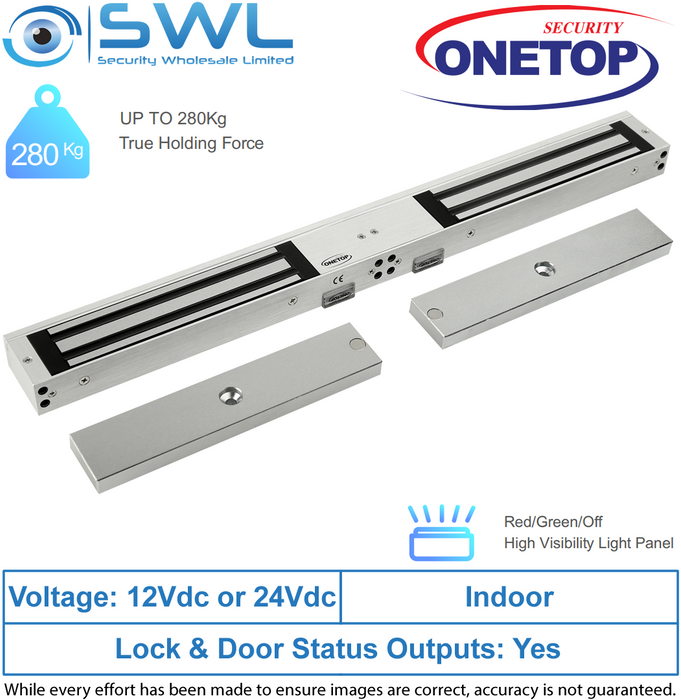

ONETOP EM3500D DSS: Double Door S/Mount Electromagnetic Lock 12/24VDC 280Kg
Description
ONETOP Double Door Surface Mount Electromagnetic Lock 12/24VDC 250kg*2. LSS/DSS full monitoring
EM3500 series is a newly innovative Fail Safe locking device designed for both Fire Door and Exit Door where safety is of paramount importance. Its unique feature of L-angle LED (Light Panel) makes the product much easier for status observation especially for night time patrol. With the Light Panel feature, EM3500 series has a unique, sophisticated appearance. EM3500 series has a holding force up to 250kg, Lock Status Sensor (LSS) monitoring, built-in varistor (MOV) surge protection, and a high resistance to corrosion. The EM3500DSS/EM3500D DSS model, has an additional monitoring feature of Door Status Sensor (DSS).
* Certifications - BS465: Tested under British Standard for 4 hours fire resistance.
* Fail Safe - Power to lock
* Lock Body Dimension - EM3500D DSS - 477L x 48W x 25H (mm)
* Armature Plate Dimension - EM3500D DSS - 185L x 38W x 12H (mm)
* Lock Operating Voltage - 12/ 24VDC ±10%
* Lock Operating Current - 530mA /12VDC; 260mA /24VDC
* Lock Holding Force - Up to 250~280Kg
* Weight - EM3500D DSS 4.0Kg
* Output Signals - EM3500D DSS is equipped with LSS & DSS
* Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A
* Door Status Output (DSS) NO/COM, Max 24VDC; Max 0.2A
* Operating Temp -10°C ~60°C
* Operating Humidity 0~95% (non-condensing)
* Light Panel Red/Green/Off indicating the status
* Insecure/Secure/Power Off the magnetic lock
* Surface Finish - Anodized Aluminium housing Zinc plated for anti-corrosion
See specification sheet and related products below.
