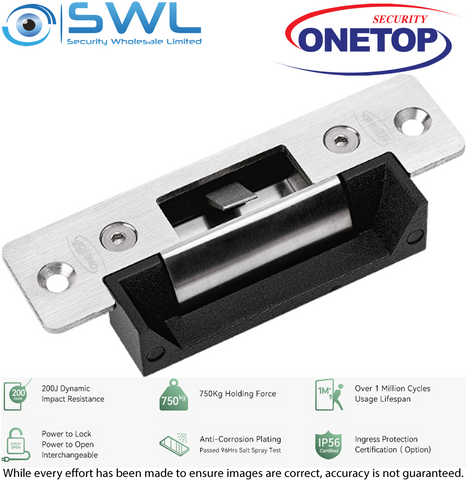

ONETOP ES2012: Electric Strike Fail Safe or Secure, IP56
Stock Code:
58104
POA
Description
The ES2012 series are high quality electric strikes operated on 12 VDC, they are suitable for use with surface mount mechanical door locks and easy to install. The device can be configured easily on site to fail safe or fail secure and have no loose pins. The changeover is achieved without removal of the strike body through a patented screw cap part. ES2012 series model are IP56 weather resistant. Extension lips of different length are available onorder as options.
Features:
* Fail Safe/ Fail Secure - Interchangeable* Standard - 123.7L x 43W x 34.9D (mm). See specification sheet
* Faceplates - See specification sheet
* Lock Operating Voltage - 12/24VDC +/- 10%
* Lock Operating Current - 12VDC@2oomA, 24VDC@100mA
* Static Strength - Up to 750Kg
* Impact Resistance - Up to 160J
* Life Cycle Test - 1 million operations
* Weight - .52Kg
* Surface Finish - Brush stainless steel faceplate. Stainless steel keeper. Powder coated black housing
* Warranty - 2 years
