ONETOP R40S-24: Wall Mount Fire Door Holder 40kg 24VDC
Stock Code:
58146
POA
Description

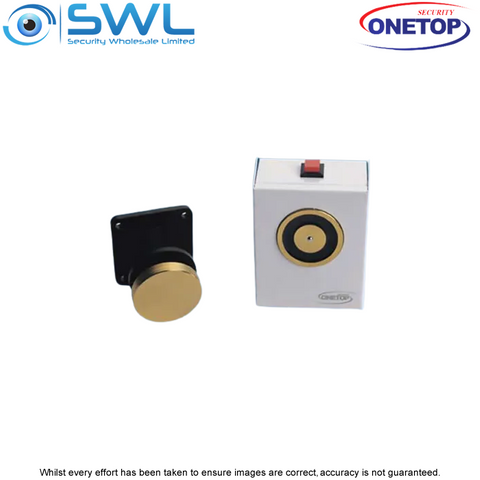

R40S-24: Wall Mount Fire Door Holder 40kg, 24VDC, Without Monitoring
The R40S magnetic door holder is installed where doors are required to be held in the open position for general traffic.
These door holders have passed the BS Fire Rating of 4 hours. This device operates on 24v.
Specification
* Certification - CE and BS476 - Fire tested for 4 hours
* Lock Mode - Power to lock
* Lock Body Dimension - 70L x 40W x 85H (mm) - R40S model.
* Lock Operating Voltage - 24VDC+/-10% - this model
* Lock Operating Current - 80mA/ 12VDC
* Lock Holding Force - 40Kg
* Weight - 1Kg
* Surface Finish - High quality plating for anti-corrosion
