ONETOP R60-PCH-24: Extension Wall Mount Fire Door Holder 60kg, 24VDC
Description
********** EOL Special *********
R60-PCH-24: Extension Wall Mount Fire Door Holder 60kg, 24VDC - No monitoring

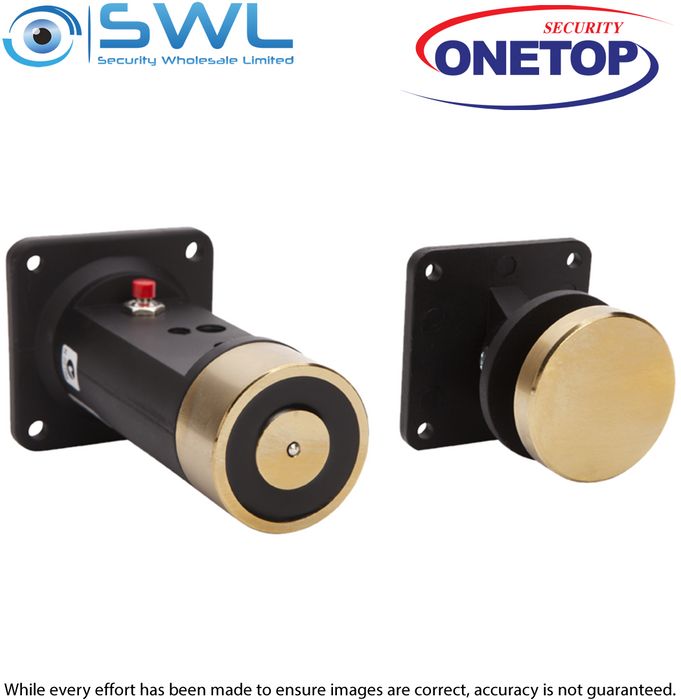

Fire and smoke door magnetic holder, titanium alloy surface finished, elegant appearance. Installed on fire and smoke doors in projects where doors are required to be held in the open position for both pedestrian and general traffic, the devices have to be linked into a buildings fire/smoke alarm system.
When an alarm occurs, power is removed from the devices and the doors are returned to the closed condition, preventing the spread of fire and/or smoke to other areas. The devices are fire tested to a rating of 4 hours and are supplied either 12 or 24VDC.
R60-PCH door holders have passed the BS Fire Rating of 4 hours.
Specification R60-PCH-24
* Certification - CE and BS476 - Fire tested for 4 hours
* Lock Mode - Power to lock
* Lock Body Dimension - 60L x 108W x 60H (mm) - R40-PCH model.
* Lock Operating Voltage - 24VDC+/-10% - this model
* Lock Operating Current - 80mA/ 24VDC
* Lock Holding Force - 60Kg
* Weight - 1Kg
* Surface Finish - High quality plating for anti-corrosion
* Warranty - 2 Years
