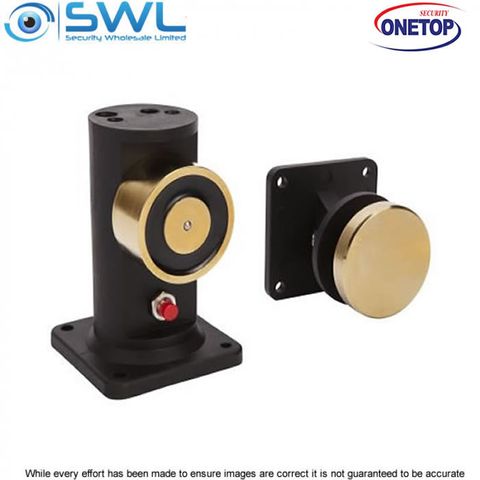

ONETOP R60-PCV-12: Extension Floor Mount Fire Door Holder 60kg 12VDC
Description
********** EOL Special *********
R60-PCV-12: Extension Floor Mount Fire Door Holder 60kg, 12VDC, No monitoring
Fire and smoke door magnetic door holder, titanium alloy surface finish, elegant appearance.
Installed on fire and smoke doors in projects where doors are required to be held in the open position for both pedestrian and general traffic, the devices have to be linked into the buildings fire/smoke alarm system.
When an alarm occurs, power is removed from the devices and the doors are returned to the closed condition, preventing the spread of fire and/or smoke to other areas. The devices are fire tested to a rating of 4 hours and are supplied either 12VDC or 24VDC. Push button door release.
Specification R60-PCV-12
* Certification - CE and BS476 - Fire tested for 4 hours
* Lock Mode - Power to lock
* Lock Body Dimension - 62L x 59W x 88H (mm) - R40-PCH model.
* Lock Operating Voltage - 12VDC+/-10% - this model
* Lock Operating Current - 160mA/ 12VDC
* Lock Holding Force - 60Kg
* Weight - 1Kg
* Surface Finish - High quality plating for anti-corrosion
* Warranty - 2 Years
