Trojan TDL TB – Timer Board 12 VDC 8 Amp
Description
The TDL multifunction timer allows you to set a definitive time duration to operate.
There are 4 input types that it can have:
Off Delay (loss of 12Vdc on the input gives an OFF delay on the output)
On Delay (gain of 12Vdc on the input gives ON delay on the output)
Off Pulse Trigger (the 12Vdc input is lost for a moment which gives an OFF delay on the output)
On Pulse Trigger(the 12Vdc input is lost for a moment which gives an ON delay on the output)
There are 16 time intervals to choose from which are preset and selected by a rotary dip switch
Features:
* 1 Second to 2 Hour Timer Board
* Input terminals for a switched contact or a negative trigger
* The outputs consist of NO / NC contacts

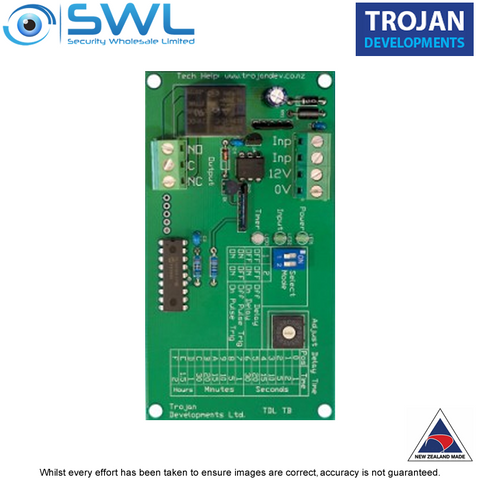

* LED indication for Power, Input triggered, Timer counting down and output relay operated
* Output contact rating: 8amps resistive max
* Quality rising clamp terminals (maximum cable size 2.5mm2)
* Board dimensions: 110mm W x 60mm H x 23mm D
* Compatible with the TDL Mounting Base with integrated cable trunking
* The TDL Multifunction timer is easy to set up by selecting the time required using the rotary dip switch as listed above.
* The TDL timer is also micro processor based so the set time will not drift as the components age or the temperature fluctuates.
* There are three LEDs on board that indicate that the board has power, that the input has been operated, that the timer is counting down and that the output is triggered.
* Contact rating: 8amps resistive max
* Quality rising clamp terminals (maximum cable size 2.5mm2)
* Board dimensions: 110mm W x 60mm H x 23mm D
* Compatible with the TDL Mounting Base with integrated cable trunking
Another Great New Zealand Product by Trojan Developments
