Kantech KTES-AUS: Telephone Entry System, 250 Tennants
Description

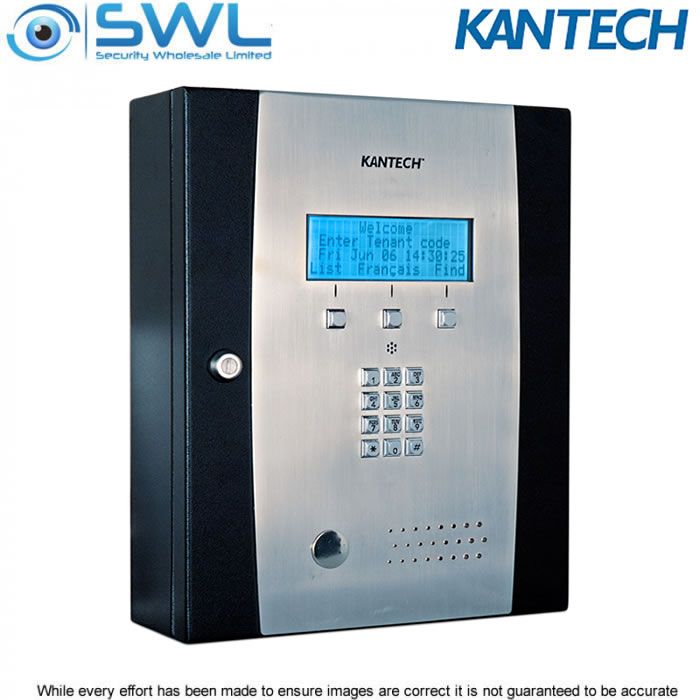

Kantech Telephone Entry System
The Kantech Telephone Entry System (KTES) is an ideal entry system for small, medium and large sites with an existing access control system, or applications that require telephone entry access only.
The system provides visitor access control to apartment buildings, gated communities, condominiums, office buildings, and industrial sites. A tenant communicates directly with a visitor using the KTES and can grant or deny admittance directly from a telephone land line or cellular phone with the touch of a button.
The KTES is simple and easy to install, can co-exist with Kantech controllers and can be remotely managed using EntraPass software. A simplified version of the EntraPass software is included with the KTES for fast configuration & firmware upgrades, live transaction monitoring & system backup.
Specification Description
AC Power Input (UL) 16.5 VAC, 40 VA, 1.9 Amps class 2 transformer.
DC Power Input (CE) 19 VDC, 3.15 Amps
DC Auxiliary Output 11.2 to 13.75 VDC, 450 mA
Lock Output 11.2 to 13.75 VDC, 650 mA
Relay Controlled Outputs
• 3 Form C Relay controlled outputs
• 30 VDC, 3 Amps max each, or
• 24 VAC, 3 Amps max each
Reader Power Outputs (JP9)
3 options with jumpers (JP9):
• 5 VDC, 175 mA, or
• 12 VDC, 175 mA, or
• From external controller Auxiliary Reader Outputs 2 outputs per reader (LED and BUZ), 25 mA max. each, open collector outputs
* Reader types - Wiegand interface
Monitored Points (Zone Inputs)
• 4 monitored points (Z1 to Z4), NO/NC, with or without EOL resistor
• 1 fixed-function tamper switch input
* Points maximum wiring AWG #22 - 600m
* Weight - 7.0 kg
Visual User Interface (VUI) Characteristics
* 4 lines x 20 Characters LCD module with controllable LED backlighting.
* The text on the 4th line cant be edited, but can be changed with the navigation buttons.
