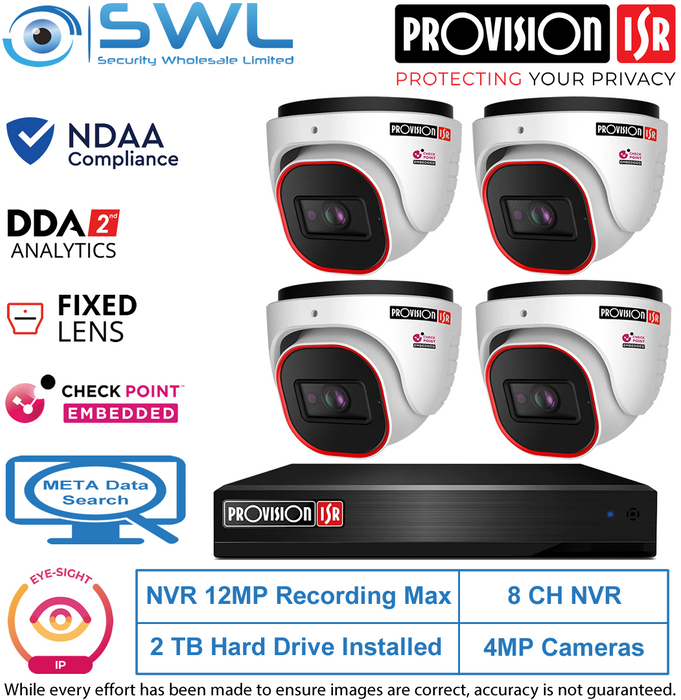

Provision-ISR 8CH NVR12 KIT: With 4x 4MP EyeSight Turrets 2.8mm 2TB HDD DDA2
Stock Code:
33616
POA
Description
Kit Includes:
1 x Provision-ISR NVR12-8200PFAN 8CH NVR 335562 x Provision-ISR DI-340IPEN-28-V4 Eye-Sight: 4MP NDAA Turrets 33153
1 x WD Purple Hard Drive 3.5" 2Tb Installed - 3 Year Warranty 46073
NVR Features:
* NDAA Compliant NVR* IP Video Inputs - 8CH RJ45 Direct Connection / Over Network
* Max Recording - 8CH 12MP @ 20 FPS, 8CH 8MP @ 25 FPS
* Onboard PoE - 8CH, total power 120W
* Max Input / Output Bandwidth - 80Mbps / 80Mbps
* Max Decoding - 1 x 12MP ; 4 x 2MP, 8 x D1
* Video Compression - H.265/ H.265+ / H.265S / H.264
* Display Outputs -HDMI (4K & 1080P), VGA (1080P, 1280x1024, 1024x768)
* Storage - 1x HDD bay. Up to 10TB Max. Not Included.
* PTZ support - Via Network
* Ethernet Uplink Port -1000 Mbps (RJ-45)
* Analytic Support - DDA2, Face Recognition, LPR & Fish-Eye Support (camera dependent)
* Audio - 1 Channel IN, 1 Channel OUT
* Alarm Input / Output - 8 + IPC
* Dimensions - W300x D250x H50mm
* APP Support - Provision CAM2 for iOS/ Android.
* APP Support 2 - IE for Windows 7/8/10, Safari for Mac OS, CMS for Windows/MAC
Camera Features:
* Embedded Cyber Protection - Quantum Iot Nano agent by Check Point™* Resolution - 1/3" CMOS 4MP (16:9)
* Lens / FOV - 2.8mm Lens 96° (H)
* D(O)RI - See specification sheet
* Wide Dynamic Capability - True WDR (120dB), BLC, HLC, ROI
* Video Format - H.265+, H.265, H.264+, H.264, MJPEG**
* Min Illumination - Day: 0.1lux / Night: 0.005lux (F1.6, AGC On) 0lux with IR on
* Max IR Distance - 20m (1 High-Power IR LED)
* Analytic Features 1 - Object Detection (Sterile Area, Line Crossing, Object Counting),
* Analytic Features 2 - Face Detection (10 Faces per frame), Heat Map, Camera Tampering.
* Audio - Built-in Microphone, Two--way Audio. Audio Input/ Output
* ONVIF - Profile T / S / G
* Storage - Micro SD Card (Up to 256Gb)
* Power - DC12V/~450mA / PoE/~7W
* Ingress Rating - Water Proof: IP67. Metal camera ball and shroud.
* Dimensions - Ø97mm × 82.6mm
* NDAA compliant
Accessories:
* IP66 Back Box: PR-JB12IP66 34074* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB12 34083
* Ceiling Mount: PR-CB12 34082 and PR-B10EX extension sections 34062
* EATON 5E UPS 650VA/360W, 2x NZ OUTLETS 13070
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
