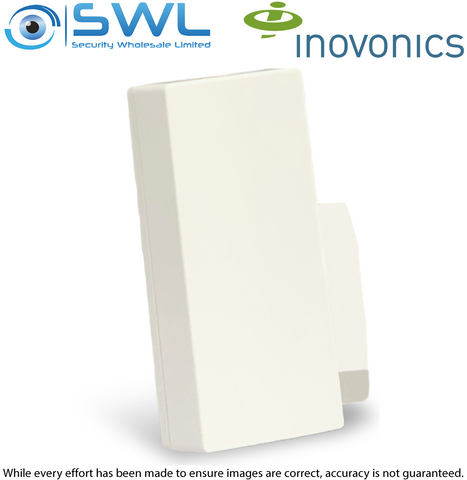

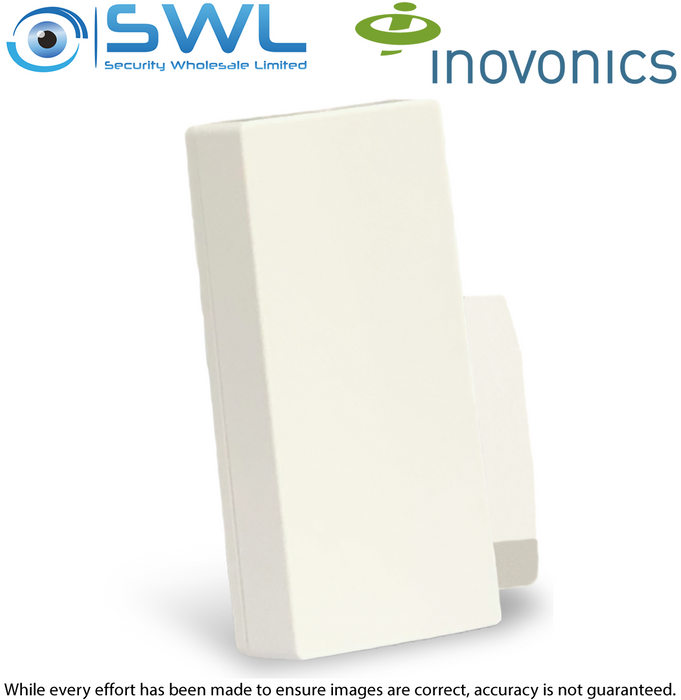

Inovonics EN1210W Door/ Window Transmitter with Reed Switch
Stock Code:
32020
POA
Description
The Inovonics door/window with reed switch includes a built-in, side mounted magnetic reed switch, with a magnet that supports a 5/8” gap.
Features:
* Contains wired input and magnetic reed switch input* Fully supervised
* Includes case tamper protection
* Dimensions: 8.9 x 4.3 x 2.3cm
* Internal battery type: Panasonic CR123A07090
* Typical battery life: 3-5 years
* External contacts: Normally open or normally closed
* External contact cabling requirements: 14-22 gauge wire, unshielded
* Distance, external contact to trasmitter: 3m maximum
* Distance, magnet to internal contact magnetic reed switch: 5/8” (1.6 cm)
* Operating environment: Temperature:-20 to 60°C
* Humidity: Up to 90% (non-condensing)
* EchoStream® frequency: 902-928 MHz, frequency hopping spread spectrum
* Check-in time frequency: EN1210W: 3 minutes; EN1210W-60: 60 minutes
* Regulatory compliance: EN1210W: FCC, ISED, RCM, RoHS; EN1210W-60: FCC, RoHS, UL 25601
Downloads
Stock Level:
Low Stock
