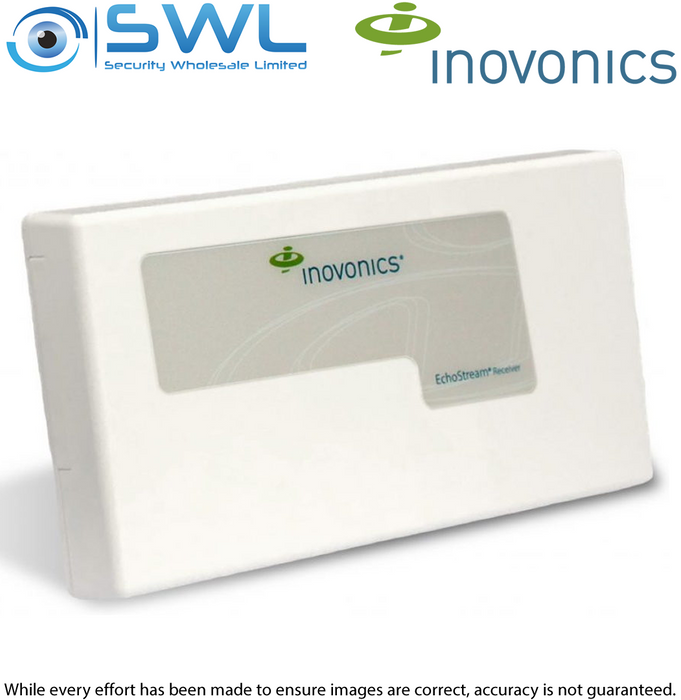

Inovonics EN4200: Security Only Serial Receiver
Stock Code:
32040
POA
Description
The security only serial receiver is a gateway between EchoStream one-way security transmitters and an head end application using an RS-232 serial interface.
Features:
* Serial Receiver transmits EchoStream formatted messages to the head end application* Supervised connection between the receiver and application
* Serial integration enables hundreds to thousands of wireless devices
Specifications:
* Dimensions: 165 x 222 x 178mm* Power requirement: 10 - 13.5VDC; 100mA
* Operating Environment: 32°- 140°F
* EchoStream® Frequency: 902-928 MHz, frequency hopping spread spectrum
* Regulatory Compliance: FCC, RoHS, AS/NZS 4268:2008,
* UL Compliance: UL365, UL636, UL985, UL1023, ULC/ORD-C1023-74, UL1610, UL1076, cUL.
Note: Serial receivers require integration with the control panel, PC applications or other control device.
