Stainless Steel Touchless Exit Button WEL2261 Standard Size

Stock Code:
56800
POA

Description

********** EOL Special **********

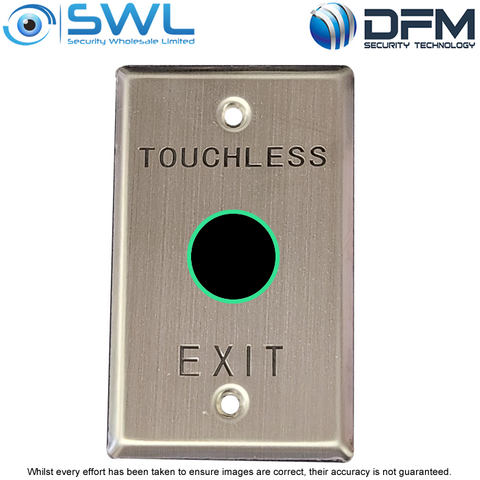

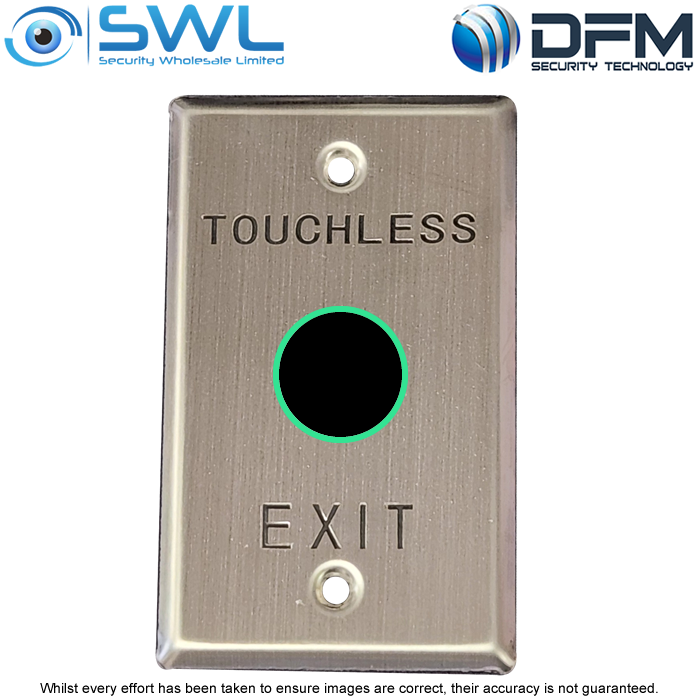

Stainless Steel Touchless Exit Button WEL2261

Key Features:
* Can be activated by simple hand wave or approach
* Protect against interference from other source of infra-red
* 12V-24V DC
* Weather proof – IP65
* Compact design – fit into standard mounting blocks
* Dual-colour LED as action confirmation
* LED colour in standby mode selectable: red or green
* Sensing range adjustable: 4 – 12cm (+-20%)
* Door stay open time adjustable: 0.5 – 20sec
* Momentary or latching selectable

Specifications:
* Dual LED colour: standby red, action green or opposite – adjustable
* Output: 1 NO and 1 NC; 1A @30VDC (max)
* Power consumption: 35mA (max) @24VDC
* Mounting hole diameter: 22mm
* Dimensions: W70 x H115 x D28mm
