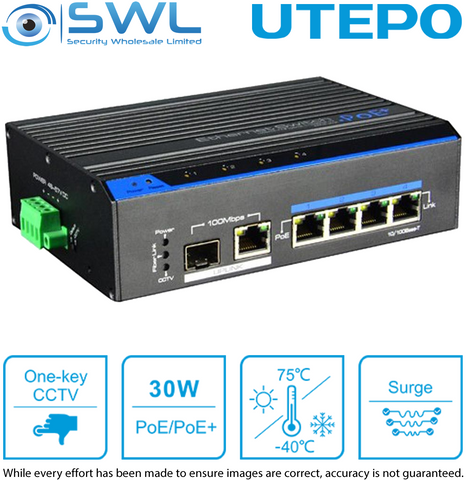

Utepo UTP7204E-POE-A1: 4 x 10/100 PoE 60W +1, Watchdog, DIN
Stock Code:
48702
POA
Description
********** Special While Stock last **********
Un-managed industrial ethernet switch providing one uplink ethernet port and one uplink optical port (100Mbps), four 100Mbps PoE ethernet ports which support af/at power supply standard. This product is designed for high definition IP camera network access; which supports one key CCTV model, can achieve VLAN, restrain the Netstorm, protect the information security and prevent the virus spread and Ethernet attack; it also integrates optical interface to achieve the perfect performance which blended with fiber optical transceivers and network switches, to solve the problem of long-distance transmission. The product could be used in network security video surveillance, network project etc.
Features:
* Downstream Ports - 4x 10/100Base-TX* Uplink Ports - 1x 100Mbps SFP Port and 1x 10/100Base-TX
* Network Standard - IEEE802.3 , IEEE802.3u, EEE802.3 X
* Switching Capacity - 1.5Gbps
* Packet Forwarding Rate - 0.9Mpps
* Forwarding Modes - Store and Forward
* Packet Buffer - 512k
* MAC Address Table - 2K
* PoE Standard - 802.3af/at
* PoE Power Method - End-span
* PoE Line Pair - 1/2(+), 3/6(-)
* PoE Output Power - 44~57V DC, 30W max
* PoE Budget - 60 watts max
* Surge Immunity - 6KV Execute: IEC61000-4-5
* ESD Immunity - 6KV Contact discharge, 8KV Air discharge,
* Execute: IEC61000-4-2
* Input Voltage - DC 48~57V
* Power Consumption - <5W
* Operating Temperature: -40°C~75°C
* Storage Temperature: -40°C~85°C
* Humidity (Non-condensing) - 5%-95%
* Dimension (L×W×H) - 159mm×110mm×46mm
* Weight - 530g
* MTBF - 200000 Hours
* Certification - CE, FCC, ROHS
See below for datasheet .pdf
