Utepo UTP7208GE-PoE: 8 x Gigabit PoE 80-120W + 2 x SFP Watchdog, DIN, 12-48VDC
Stock Code:
48714
POA
Description
Power Supply Options: (not included)
* Mean Well PSU: 48Vdc 480W 48717 (This will give you 240W of PoE power)* Provision-ISR 12VDC 5A Power Supply 34510 (This will give you 45W of PoE power)

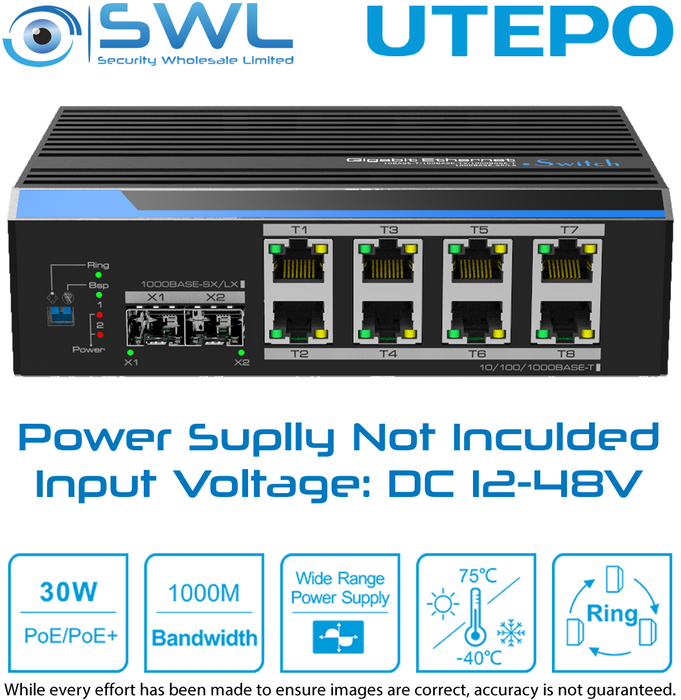

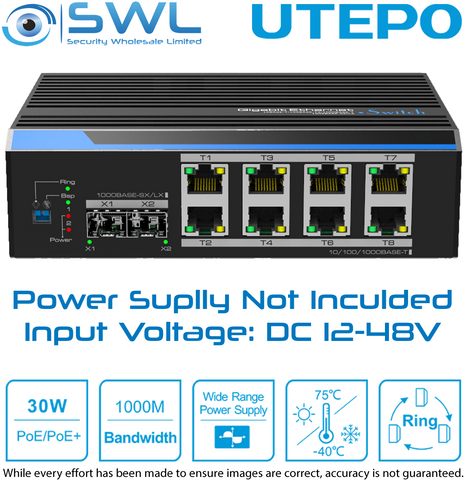

UTP7208GE-POE, full gigabit one-key ring industrial unmanaged switch (DC 12-48V), provides 8*10/100/1000Base-T Ethernet PoE port and 2*1000Base-X SFP slots. It supports auto speed reduction on Ethernet ports, the transmission distance is up to 200 meters max. What’s more, the switch supports one-key fast ring, one-key broadcast storm prevention (BSP), IEEE802.3af/at and PoE watchdog. With industrial components, fanless and low power consumption design, the series meet the requirement of industrial project, and are widely used in Smart power grid, rail transportation, smart city, safe city, new energy, aerospace, smart manufacturing, military and other industrial fields.
Features:
• Providing 8*10/100/1000Base-T Ethernet PoE ports and 2*1000Base-X SFP slots.• Support one-key fast ring, with self-healing time in 20ms.
• Support wide voltage input range from DC 12V to DC 48V:
- Input power : 95W (12Vdc), 135W (24Vdc) or 255W(48Vdc).
- PoE Output power: 80W (12Vdc), 120W (24Vdc) or 240W(48Vdc).
• Support IEEE802.3af/at, max PoE power output for single port is up to 30W
• Support one-key broadcast storm prevention (BSP), preventing crash of the switches.
• Support PoE watchdog, auto reboot the connected failure PD devices.
• Support one channel relay alarm output.
• Fanless, wave metal shell, low power consumption design.
• Support installation of DIN rail and wall mounted, adapting to a variety of environments.
