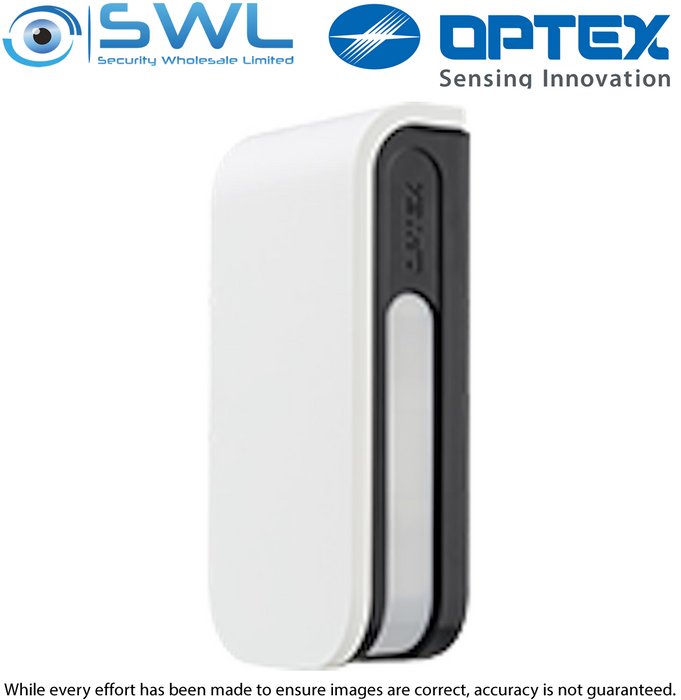

Optex OPT-BXS-ST: Outdoor Passive Infrared Detector Up to 24m
Stock Code:
28009
POA
Description
The BX Shield is a series of curtain outdoor motion sensors with up to 12m detection range on each side. Ideal to detect people in the immediate boundary of your home or office building, the outdoor curtain detectors feature four PIRs, two on each side. The left and right detection area can be set up completely independently from each other. The BXS-ST is the standard bi-colour hardwired model.
Features:
* Hardwired curtain PIR up to 12m per side* Completely independent detection setting per side
* Versatile and easy-to-install design
* Not affected by environment or small animals
Specifications:
* Detection Method: Passive Infra Red* Coverage: 12m each side, with 2 detection zones each side
* PIR Distance Settings: 2.5m, 3.5m, 6m, 8m, 12m
* Detection Angle: Up to 3° away from wall
* Power Input: 9.5-18VDC
* Alarm Output (L & R): 28VDC 0.1 A max. Individual; Right or General, N.O. or N.C.
* Tamper: YES
* Ingress Rating: IP55
* Mounting: Wall or Pole. Indoor/ outdoor
* Dimensions: 92.8(W) x 199.7(H) x 98.7(D)
See brochure and installation manual below.
