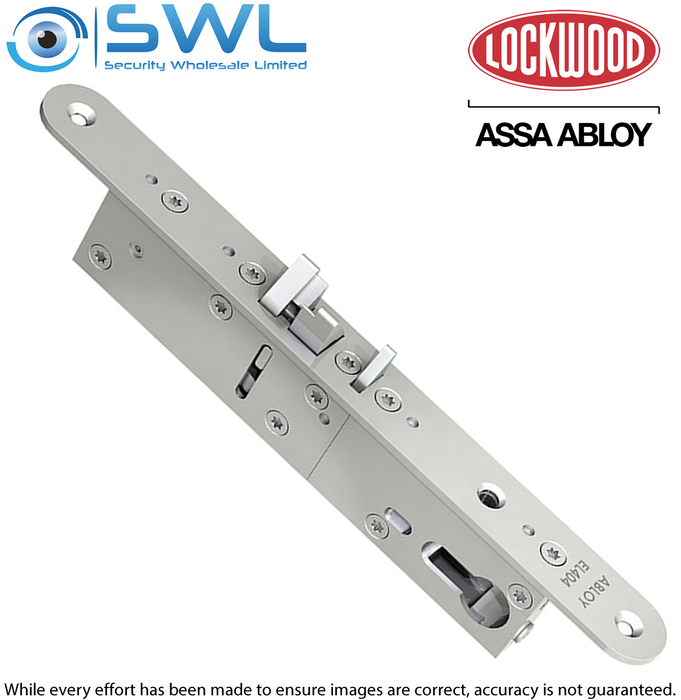

Lockwood EL404-101000: Electric Mortice Lock SOLENOID LOCK DIN FAIL SAFE
Description
ABLOY® EL404 Solenoid Locks
The ABLOY® EL404 push and pull function lock case for narrow profile doors with double action bolt features an innovative adjustable back set technique.ABLOY®EL404 is typically used in narrow profile exterior doors of apartment buildings and interior doors of business premises. The lock has a double action bolt construction for durable and easy use and it offers a cost effective way of electric locking that is highly advantageous in comparison to, for example, an electric strike.
ABLOY®EL404 can be controlled by a variety of control devices such as card reader, keypad or timer. The lock can be connected to door automatics and is an excellent solution for use with access control systems. Horizontal frame mounting above the door is also possible. Because of its unique symmetrical trigger bolt ABLOY® EL404 can be used in swinging doors.
With theABLOY®EL404 door can be opened by pushing or pulling when electric control is switched on. The ABLOY® EL404 can be configured to operate also as fail unlocked, then the door can be opened by pushing or pulling when the electric control is switched off. The lock can always be opened by key, by thumb turn or by push pad in EXIT doors.For higher security the lock deadlocks automatically when the door closes.
Features:
* Adjustable back set 25mm, 30mm or 35mm
* 25mm forend plate
* Accepts Euro profile cylinder
* Non-handed, symmetrical trigger bolt
* 14.5mm bolt throw
* Immediate release of deadlocking
* Configurable fail locked / fail unlocked
* Set to open without power fail safe
* Wide operating voltage of12-24 VDC (-10%/+15%)
* Current consumption max 550 mA (12 VDC), Idle 240 mA (12 VDC), Max 270 mA (24 VDC), Idle 110mA (24 VDC).
* Includes EA307 strike for metal doors
*ABLOY® EL404 is not recommended for use in doors with seal force or in fire rated doors. In swing doors the lock may be locked only when the door has completely stopped in the closed-position
ABLOY® EL404 replaces ABLOY® EL414 and ABLOY® EL415
Finish
Polished Chrome
