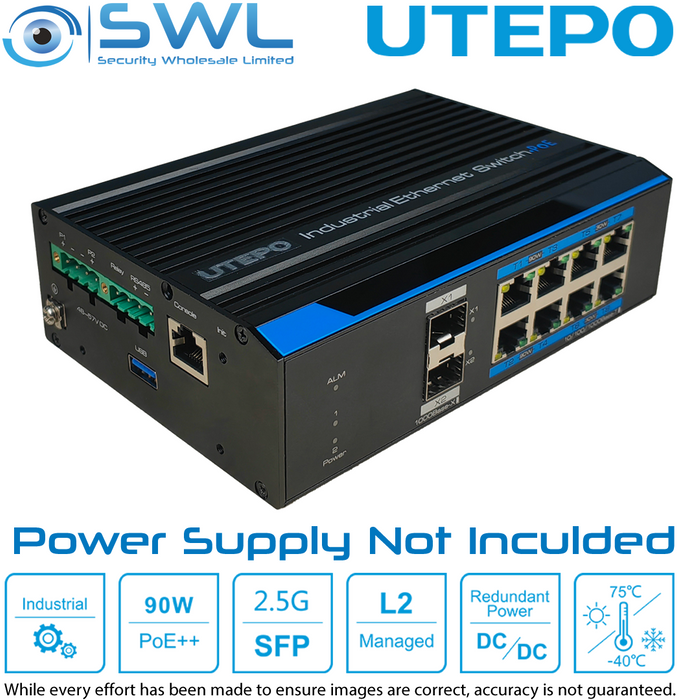

Utepo UTP7310S-PSD: 8 x Gigabit PoE 480W + 2 x SFP, Watchdog, DIN, L2 Managed
Stock Code:
48715
POA
Description
Power Supply Options: (not included)
* Mean Well PSU: 48Vdc 480W 48717 (This will give you 240W of PoE power)* Provision-ISR 12VDC 5A Power Supply 34510 (This will give you 45W of PoE power)
The switch provides 8*10/100/1000Mbps Ethernet RJ-45 ports, 2*1G/2.5Gbps SFP uplink ports. UTP7310S-PSD meets IEEE 802.3af/at/bt standard. All RJ-45 ports support Power-over-Ethernet, 1~4 ports deliver up to 90W (PoE++) power per port, 5~8 ports deliver up to 30W (PoE+) power per port.
The switch supports PoE watchdog features, which can detect and restart the camera automatically if it's frozen. It supports the Q-PoE (Quick PoE) technology, which enables PoE power supply immediately upon switch startup without waiting for switch system software control. It supports the P-PoE (Perpetual PoE) technology, which enables PoE power supply without interruption when switch is restarting and restores the network quickly.
The switch has extensive L2 management functions, such as 802.1Q VLAN, 802.1p QoS, SNMP, Fast-Ring, and PoE control. It can be easily managed via a WEB GUI (http/https), CLI (telnet/ssh/console) or SNMP.
Features:
* PoE++ RJ-45 ports: 4*10/100/1000, 90W max per port* PoE+ RJ-45 ports 4*10/100/1000, 30W max per port
* 2*1G/2.5GBase-X SFP ports, 1*RJ-45 Console, 1*RS485, 1*Relay, 1*USB 3.0
* Max PoE Output 480W
* Working temperature:-40~75°C
* 6kV surge immunity
* 6kV contact discharge, 8kV air discharge ESD protection
* Relay alarm for cable link down and PoE link down
* Fan-less metal shell design
* DIN-rail/wall mounted/desktop installation
* 802.1Q VLAN
* 802.1P QoS
* SNMP
* Fast-Ring
