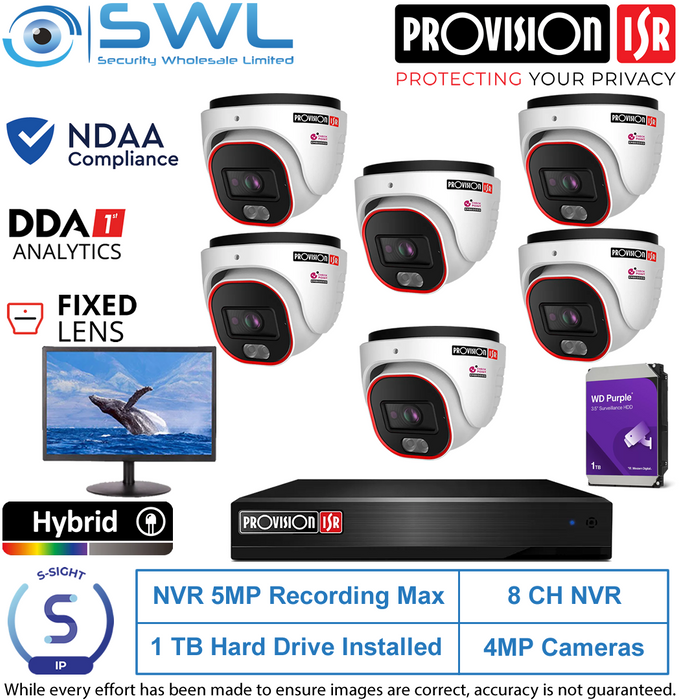

Provision-ISR 8CH NVR5 KIT: With 6x 4MP S-Sight Turrets 2.8mm 1Tb, 22" MONITOR
Stock Code:
33620M
POA
Description
Kit Includes:
1 x Provision-ISR NVR5-8200PXN(MM) 8CH NVR 335166 x Provision-ISR DI-340IPSN-28-V2 S-Sight: 4MP NDAA Turrets 33015
1 x WD Purple Hard Drive 3.5" 1Tb Installed - 3 Year Warranty 46072
1 x Xtreme 22" LED Monitor 50110
NVR Features:
* NDAA* IP Video Inputs - 8
* Onboard PoE - 8 Ports, 120W (12.5W average) max 14W.
* Max Input / Output - 64Mbps / 64Mbps
* Max Recording - 8CH @ 5MP real time
* Max Decoding - 1CH @ 5MP, 4/8CH D1
* Video Compression - H.265+ / H.265, H.264
* Display Outputs - 1x HDMI 1920 x 1080, 1x VGA output.
* Storage - 1x drive bay, max capacity 6Tb (not included)
* Ethernet Port - 1. Independent 10/100Mbps port
* Power - 48Vdc / 2.5A
Camera Features:
* Resolution - 4MP 1/3” CMOS (16:9)* Lens / FOV - 2.8mm 102° (H)
* Video Format - H265, H.264 Compression
* Wide Dynamic - True Wide Dynamic, 120dB (with BLC, HLC, ROI)
* Min Illumination - Day: 0.1 lux / Night: 0.006ux (@F1.6, AGC on) 0 lux with IR on
* Max IR Distance - 20m actual (1 High Power IR LED)
* ONVIF - Profiles T, S & G
* Analytic Features - DDA1 Object Recognition, Line Crossing & Sterile Area
* Audio - Built-in Mic
* Storage - SD Card 128Gb Max
* Power - DC12V/~400mA / PoE/~ 5.2W
* Ingress Rating - IP67. Metal camera ball and shroud.
* Dimensions - Ø97mm×82.6mm
* NDAA Compliant camera
Accessories:
* IP66 Back Box: PR-JB12IP66 34074* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB12 34083
* Ceiling Mount: PR-CB12 34082 and PR-B10EX extension sections 34062
* EATON 5E UPS 650VA/360W, 2x NZ OUTLETS 13070
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
