Provision-ISR 8CH NVR12 KIT: With 4x 8MP S-Sight Turrets 2.8mm, 4TB
Stock Code:
33612
POA
Description

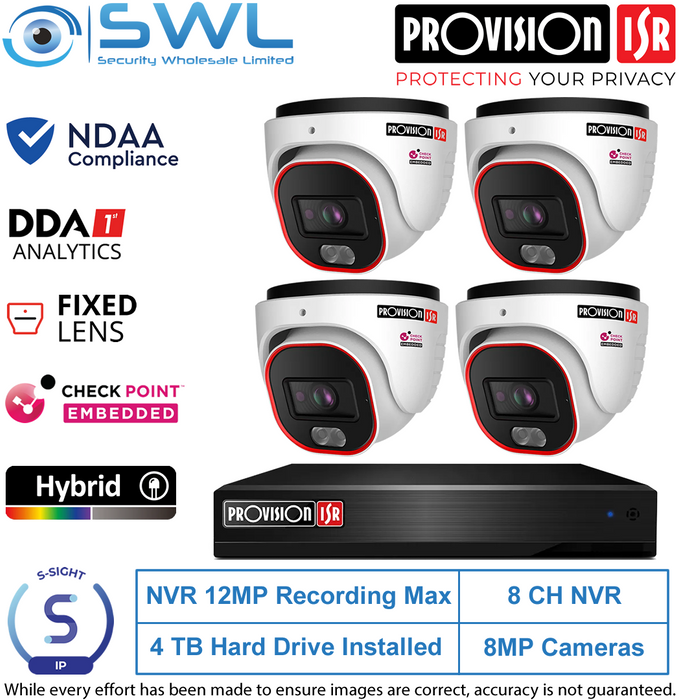

Kit Includes:
1 x Provision-ISR NVR12-8200PFAN 8CH NVR 335564 x Provision-ISR DI-380IPSN-28-V3 S-Sight: 8MP NDAA Turrets 33030
1 x WD Purple Hard Drive 3.5" 4Tb Installed - 3 Year Warranty 46075
h3>NVR Features:* NDAA Compliant NVR
* IP Video Inputs - 8CH RJ45 Direct Connection / Over Network
* Max Recording - 8CH 12MP @ 20 FPS, 8CH 8MP @ 25 FPS
* Onboard PoE - 8CH, total power 120W
* Max Input / Output Bandwidth - 80Mbps / 80Mbps
* Max Decoding - 1 x 12MP ; 4 x 2MP, 8 x D1
* Video Compression - H.265/ H.265+ / H.265S / H.264
* Display Outputs -HDMI (4K & 1080P), VGA (1080P, 1280x1024, 1024x768)
* Storage - 1x HDD bay. Up to 10TB Max. Not Included.
* PTZ support - Via Network
* Ethernet Uplink Port -1000 Mbps (RJ-45)
* Analytic Support - DDA2, Face Recognition, LPR & Fish-Eye Support (camera dependent)
* Audio - 1 Channel IN, 1 Channel OUT
* Alarm Input / Output - 8 + IPC
* Dimensions - W300x D250x H50mm
* APP Support - Provision CAM2 for iOS/ Android.
* APP Support 2 - IE for Windows 7/8/10, Safari for Mac OS, CMS for Windows/MAC
Camera Features:
* Embedded Cyber Protection - Quantum Iot Nano agent by Check Point™* Resolution - 1/2.7" CMOS 8MP (16:9)
* Lens / FOV - 2.8mm F1.6(108.9°)
* DORI - See specification sheet
* Video Format - H.265+, H.265 / H.264+, H.264
* Wide Dynamic - True WDR, BLC, HLC, ROI
* Min Illumination - 0.02 lux (F1.6., AGC ON) 0 lux with IR on
* Max IR Distance - 20m (1 High Power IR LED)
* Analytic Features - DDA1 Line Crossing & Sterile Area
* Audio - One-way Audio, Built-In Microphone + Audio Input
* Audio Compression - G.711A/ G711U
* Storage - Micro SD Card (Up to 256Gb)
* Power - DC12V/~900mA / PoE/~10W
* Ingress Rating - Water Proof: IP67
* Dimensions - Ø113mm×99.6mm
* NDAA Compliant camera
Accessories:
* IP66 Back Box: PR-JB12IP66 34074* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB12 34083
* Ceiling Mount: PR-CB12 34082 and PR-B10EX extension sections 34062
* EATON 5E UPS 650VA/360W, 2x NZ OUTLETS 13070
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
