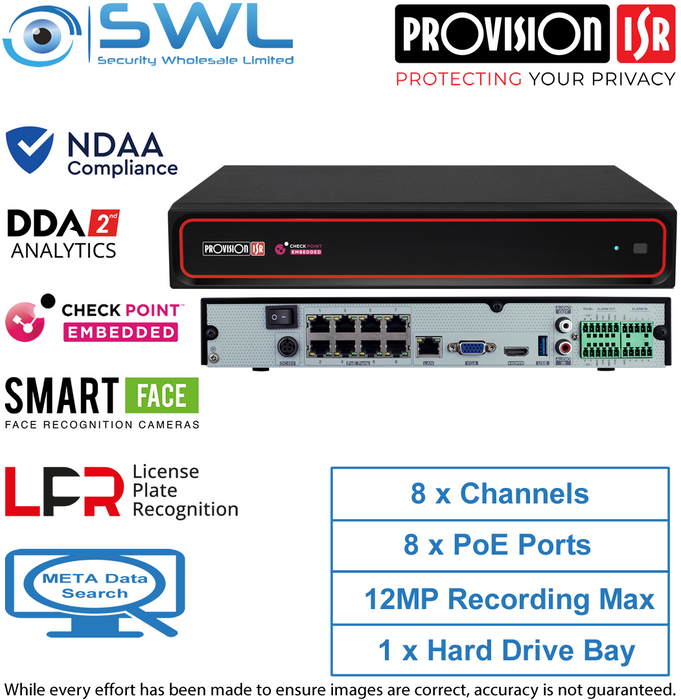

Provision-ISR NVR12-8200PFAN 8CH NVR, 8xPoE 12MP, Face Rec, LPR, Alarms, NDAA
Stock Code:
33556
POA
Description
Provision-ISR’s NVR12-8200PFAN is a high-performance network video recorder with an integrated 8-channel PoE switch for high-definition surveillance. supporting Face Recognition and advanced Video Analytics (DDA).
The device, suitable for small-sized installations (up to 8 channels), features 8 alarm inputs + 8 alarm outputs and provides you with everything you need for a trouble-free CCTV project. This model complies with NDAA demands and ensures that your devices are cyber-protected round the clock with Check Point protection.
Features:
* NDAA Compliant NVR* IP Video Inputs - 8CH RJ45 Direct Connection / Over Network
* Max Recording - 8CH 12MP @ 20 FPS, 8CH 8MP @ 25 FPS
* Onboard PoE - 8CH, total power 120W
* Max Input / Output Bandwidth - 80Mbps / 80Mbps
* Max Decoding - 1 x 12MP ; 4 x 2MP, 8 x D1
* Video Compression - H.265/ H.265+ / H.265S / H.264
* Display Outputs -HDMI (4K & 1080P), VGA (1080P, 1280x1024, 1024x768)
* Storage - 1x HDD bay. Up to 10TB Max. Not Included.
* PTZ support - Via Network
* Ethernet Uplink Port -1000 Mbps (RJ-45)
* Analytic Support - DDA2, Face Recognition, LPR & Fish-Eye Support (camera dependent)
* Audio - 1 Channel IN, 1 Channel OUT
* Alarm Input / Output - 8 + IPC
* Dimensions - W300x D250x H50mm
* APP Support - Provision CAM2 for iOS/ Android.
* APP Support 2 - IE for Windows 7/8/10, Safari for Mac OS, CMS for Windows/MAC
Storage & UPS Options:
* 4Tb 46075* 6Tb 460751
* 8Tb 460752
* 10Tb 460753
* EATON 5E UPS 650VA/360W, 2x NZ OUTLETS 13070
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
