Videx GSM4KCR/4G-1S/M: 4G Intercom Kit Single Button With Keypad
Description

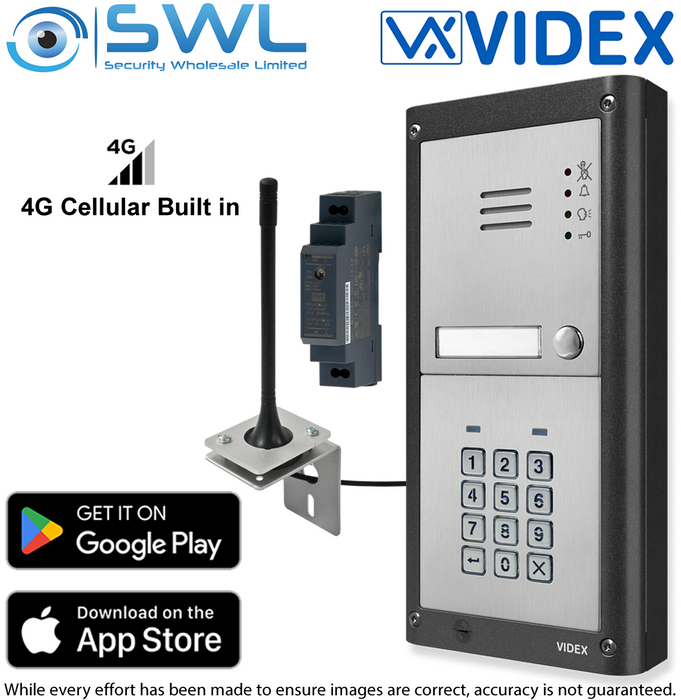

Videx GSM Intercom 4G Kit with Keypad
Features:
* Compatible with 2G, 3G & 4G networks
* 1 Button kit with keypad up to 12 button kits available (surface or flush)
* Expandable up to 50 call buttons using a combination of additional 4000 series button modules and surface or flush back boxes
* DDA compliant voice annunciation and call progress LED's
* 4 Telephone numbers per call button (1 primary and 3 diverts)
* 1000 Dial to open numbers (which can each be assigned with an access level)
* 32 Temporary dial to open numbers (programmable from 1 - 255 hours)
* 1000 User integrated proximity access
* 1 Programmable call button timeband
* Up to 10 Programmable access control timebands
* Up to 10 Programmable free access timebands
* Up to 10 Programmable access levels
* Automatic time correction feature including daylight time saving adjustments
* Programming access methods:
- SMS
- Videx Smartphone SMS Wizard Apps (Installer & User Versions)
- GSMSK PC software or new "over the air" feature
* Push to exit input and dry contact relay (C, NO and NC)
* 2 Auxiliary inputs and 2 auxiliary outputs
* Micro USB connection (for ease of programming using the GSMSK software)
* RS485 bus connection (for networking with the Art.4903 keypad and/or Art.4850R off board proximity reader or for ease of programming using the GSMSK software)
Specification:
* Lock output: Dry contact relay (C, NO, NC)
* Auxiliary outputs: 2 x Open collector
* Auxiliary inputs: 2
* Dial to open numbers: Up to 1000
* Temp dial to open numbers: Up to 32
* Programmable timebands: Yes, 1x call button timeband, 10x access control timebands and 10x free access timebands
* Access levels: yes, up to 10 programmable access levels
* Divert calls per button: 1 to 3 numbers each
* Power input: 12-14Vdc
* Programming access methods:
- SMS
- Videx Smartphone SMS Wizard PRO App (Installer) & User Version
- GSMSK PC software or new "over the air" feature
* USB connection: Yes, micro USB
* RS485 connection: Yes = A, B & 0V (for programming via PC software or used for access control network connection with 4903 and 4850R modules)
* Event logging: up to 4000 Events
* PSU model: HDR-15-12 slim line 12Vdc psu
* Antenna: 434 (5m cable)
* Expandable: Yes, up to 50 buttons using a combination of 4000 series button expansion modules (4042, 4043, 4044 and 4045)
Mobile Apps
* Videx SMS Pro (Installer)
* Videx SMS (End User)
See specification sheet below.
