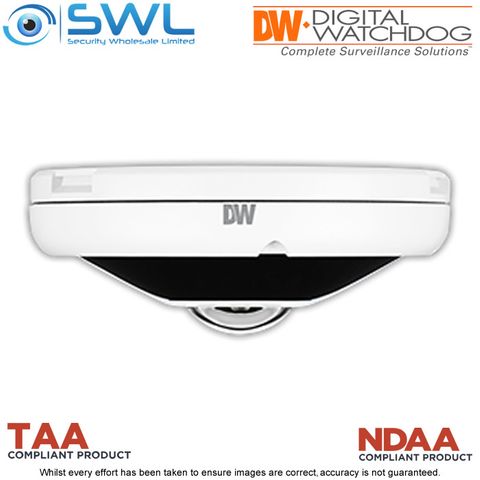

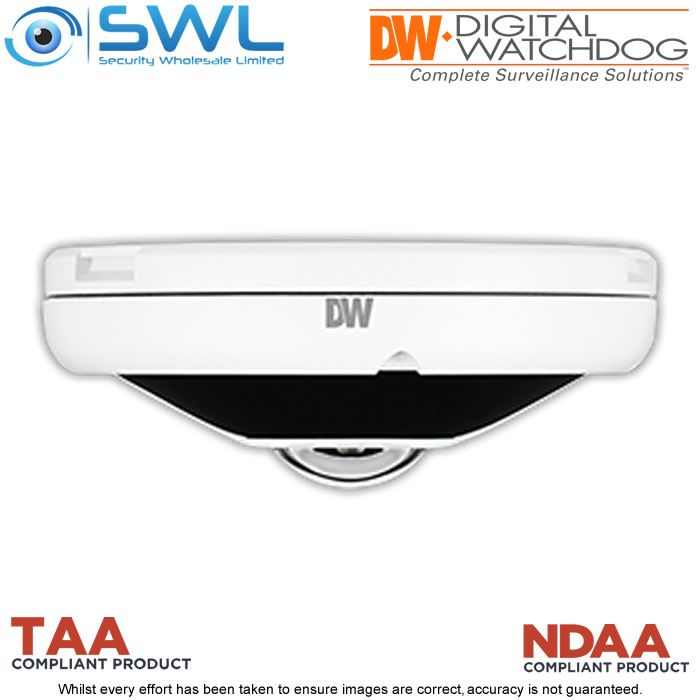

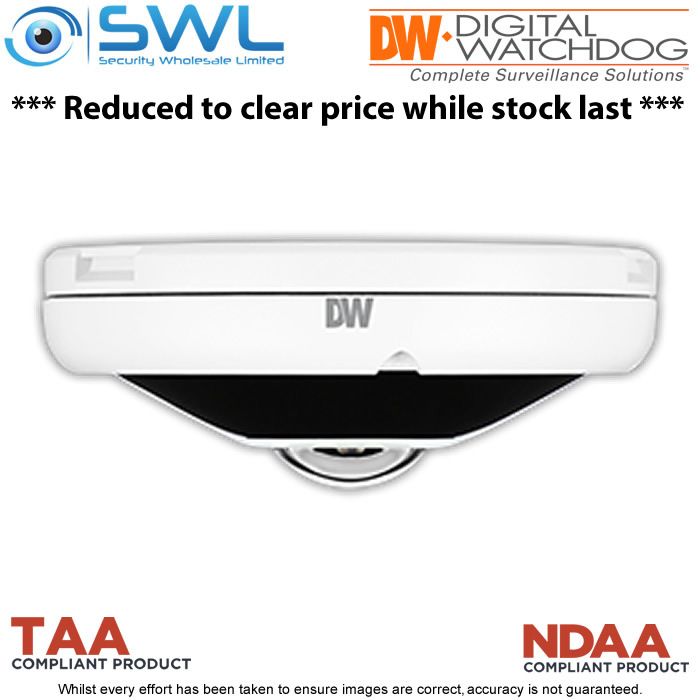

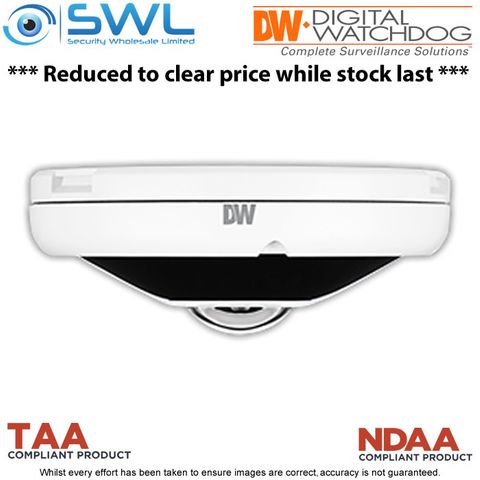

DW: DWC-PVF5Di1TW 5MP MEGApix PANO™ IVA 360° Fisheye IR25m IP66 IK09 1.55mm

Stock Code:
64100
POA

Description

MEGApix PANO™ 5MP 360° Fisheye Preloaded with IVA

360° view vandal resistant fisheye cameras with IR can monitor an entire room with a single camera, providing the ultimate ROI. This 5MP sensor produces real-time 30fps panoramic images.

* Sensor/ 1.8" CMOS. 5MP @ 30fps STARLIGHT performance
* Lens / FOV - 1.55mm, 185° Horizontal & Vertical FoV
* Video Compression - H.264, H.265 & MJPEG
* Digital Noise Reduction - Smart DNR™ 3D-DNR
* Min Illumination - 0.00 lux (B/W), 0.039 lux (colour)
* Max IR Distance - 24m, Smart IR
* Images - Supports 360°, 180° and 90° panoramic views
* IVA License - Intrusion, line crossing, counting line, loitering, enter, exit, tamper.
* Audio Input - 1 input (1.0Vms, 3K ohm)
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - DWSpectrum, IPVMS, Exacqvision Technologies, Milestone Systems
* Storage - Micro SD/SDHC/SDXC class 10 card (card not included)
* Dimensions - 125 x 48mm
* Power - PoE Max 8.7W IR on, 12VDC 7.5W
* Ingress Rating - IP66. IK09 Aluminium casing
* Compliance - CE, FC, NDAA, ONVIF, UL

Brackets
* Junction Box DWC-VFJUNCW 61110
* Ceiling Mount DWC-VFCMW 61130
* Wall Mount DWC-VFWMW 61120
* Pole Mount DWC-PMB-WLW 61140
* Pendant Mount Adapter: DWC-VFHMW 61160

See specification sheet & quick install manual below.

Stock Level:
Low Stock
