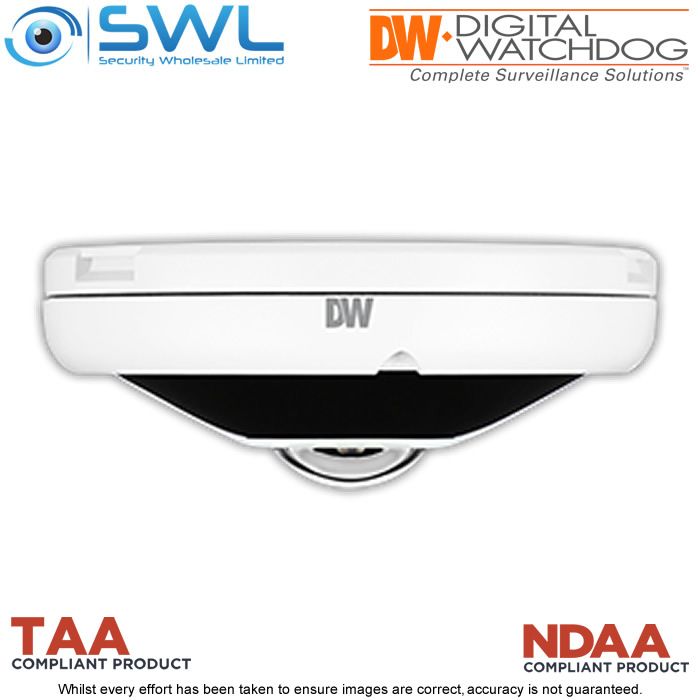

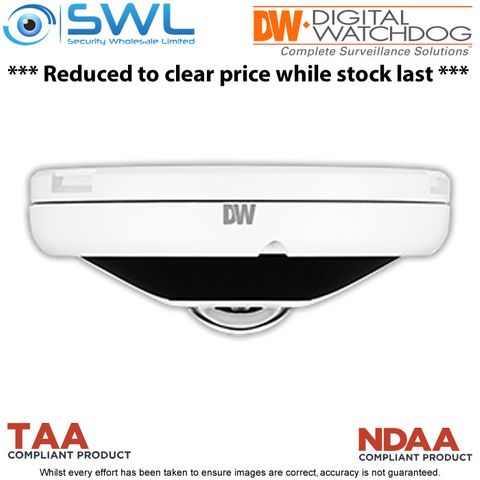

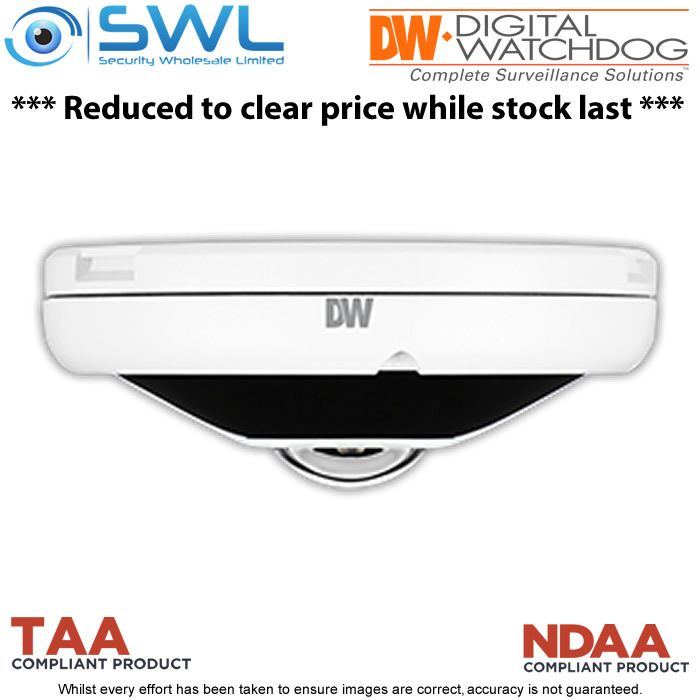

DW: DWC-PPVF9Di2TW 9MP MEGApix PANO™ IVA+ 360° Fisheye IR25m IP66 IK09 2.1mm
Description
MEGApix PANO™ 9MP 360° Fisheye Preloaded with IVA+
360° view vandal resistant fisheye cameras with IR can monitor an entire room with a single camera, providing the ultimate ROI. This 9MP sensor produces real-time 30fps panoramic images.
* Sensor/ 1.7" CMOS. 9MP @ 30fps
* Lens / FOV - 2.1mm, 185° Horizontal & Vertical Field of View
* Video Compression - H.264, H.265 & MJPEG
* Digital Noise Reduction - Smart DNR™ 3D-DNR
* Min Illumination - 0.00 lux (B/W), 0.03 lux (colour) Star-Light Pllus™
* Max IR Distance - 24m, Smart IR
* Images - Supports 360°, 180° and 90° panoramic views
* IVA License - Intrusion, line crossing, counting line, loitering, enter, exit, tamper and
* IVA + License - Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left
* Audio Input - 1 input (1.0Vms, 3K ohm)
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - DWSpectrum, IPVMS, Exacqvision Technologies, Milestone Systems
* Storage - Micro SD/SDHC/SDXC class 10 card (card not included)
* Dimensions - 125 x 48mm
* Power - PoE Max 10.0W IR on, 12VDC 8.5W
* Ingress Rating - IP66. IK09 Aluminium casing
* Compliance - CE, FC, NDAA, ONVIF, UL
Brackets
* Junction Box DWC-VFJUNCW 61110
* Ceiling Mount DWC-VFCMW 61130
* Wall Mount DWC-VFWMW 61120
* Pole Mount DWC-PMB-WLW 61140
* Pendant Mount Adapter: DWC-VFHMW 61160
See specification sheet & quick install manual below.
