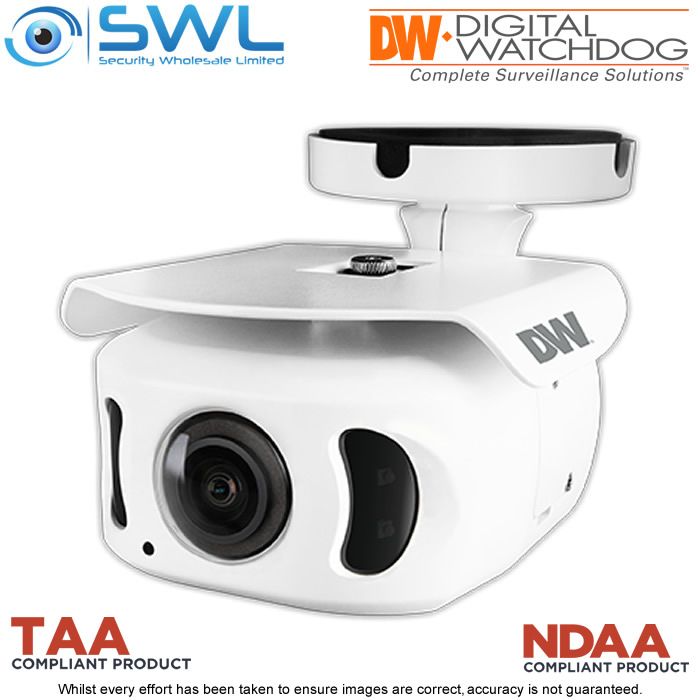

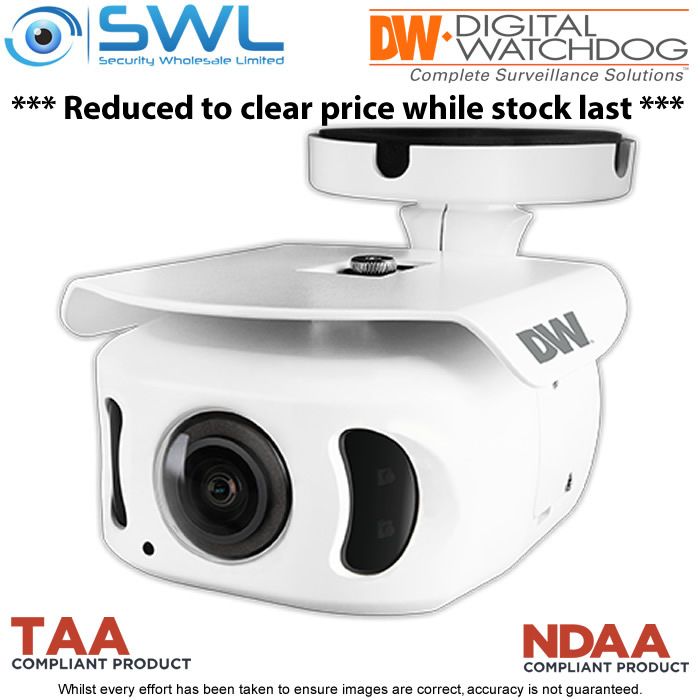

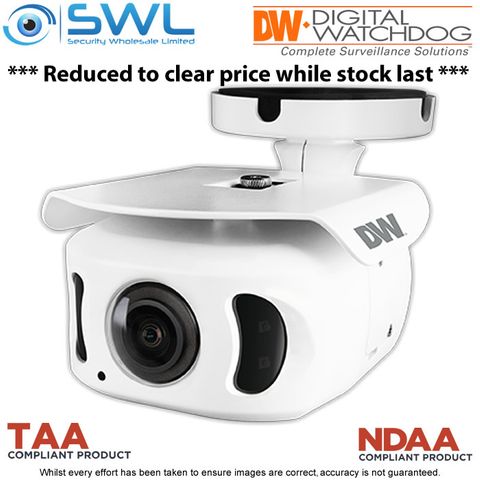

DW: DWC-MPBW8Wi2TW 8MP MEGApix IVA+ 175° Bullet WDR IR30m IP67 IK09 2.3mm
Description
A high definition ultra low-profile bullet camera, with color in near-total darkness technology and an ultra-wide 2.3mm vari-focal lens in a weather-resistant bullet housing.
This MEGApix IVA camera has a powerful engine to detect and classify people and vehicles in real-time.
* Sensor/ 1.8" CMOS. 8MP
* Lens / FOV - 2.3mm, 175° (H) & 80° (V) Field of View
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Min Illumination - 0.00 lux (B/W), 0.03 lux (colour) Star-Light Pllus™
* Max IR Distance - 30m, Smart IR™
* IVA License - Intrusion, line crossing, counting line, loitering, enter, exit, tamper and
* IVA+ License- Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left.
* Audio Input - 1 input (1.0Vms, 3K ohm), 1 output
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - DWSpectrum, IPVMS, Exacqvision Technologies, Milestone Systems
* Storage - Micro SD/SDHC/SDXC class 10 card (card not included)
* Dimensions - 128 x 223 x 97mm
* Power - PoE Max 12.3W IR on, 12VDC 8.9W
* Ingress Rating - IP66. IK09 Aluminium casing
* Compliance - CE, FC, NDAA, ONVIF, UL
Brackets
* Junction Box: DWC-B7JUNCW 61170

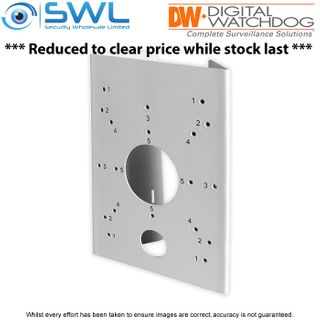

* Pole Mount Bracket: DWC-PMB-WLW 61140
See specification sheet & quick install manual below.
