DW: DWC-PDS10Wi28A 10MP MEGApix Ai Dual Domes WDR IP67 IK10 2x 5MP 2.8mm
Description

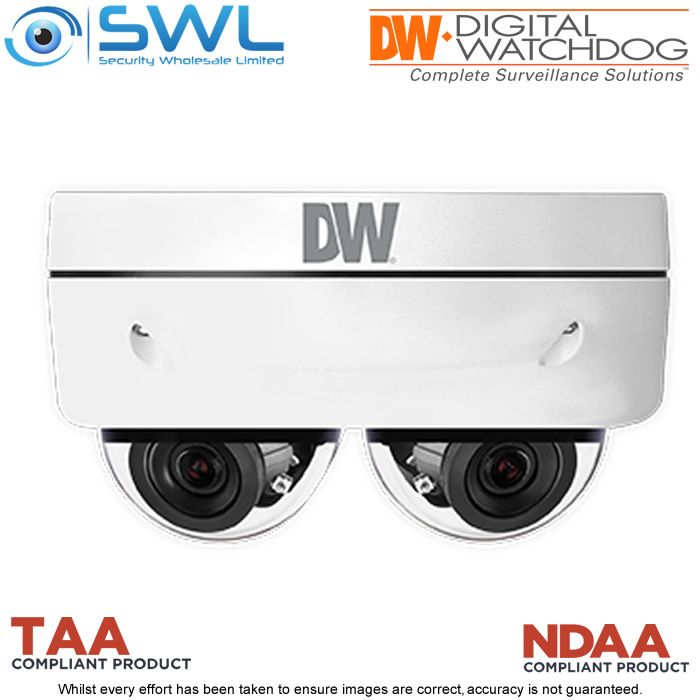

MEGApix™ Ai Dual 2x 5MP Dome Cameras 2.8mm
DW’s dual-sensor camera provides two 5MP dome cameras that can be positioned and configured independently, allowing flexible, multi-directional video surveillance that is ideal for monitoring hallways, train stations and other narrow-view environments. On board Ai edge engine placing the power of Ai deep learning object detection at your fingertips
* Sensors - 2x 2.8" CMOS. 5MP each
* Lens / FOV - 2.8mm, 102° (H) & 77° (V) Field of View each
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Min Illumination - 0.00 lux (B/W), 0.13 lux (colour) Star-Light Pllus™
* Max IR Distance - 18m, Smart IR™
* Ai Deep Learning Analytics, Single Channel:
- Zones and lines, tamper, metadata, intrusion, line crossing, counting, counting lines,
- Appear, disappear, stopped, enter, exit, direction, tailgating, dwell, logical rules
* Audio Input - 1 in-built microphone, 1 output
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - DWSpectrum, IPVMS, Exacqvision Technologies, Milestone Systems
* Storage - Micro SD/SDHC/SDXC class 10 card (card not included).
* Dimensions - 139 x 80mm
* Power - PoE Max 11.6W IR on, 12VDC 9.9W
* Ingress Rating - IP66. Aluminium casing
* Compliance - CE, FC, NDAA, ONVIF (S), UL
Brackets
* Junction Box: DWC-B7JUNCW 61170
* Wall Mount Bracket DWC-DSWM 61190 & DWC-BLJUNC-W
* Pole Mount Bracket: DWC-PMB-WLW 61140
* Ceiling Mount Bracket DWC-DSCM 61200
* Pendant Adapter DWC-V4HMW61210
See specification sheet & quick install manual below.
