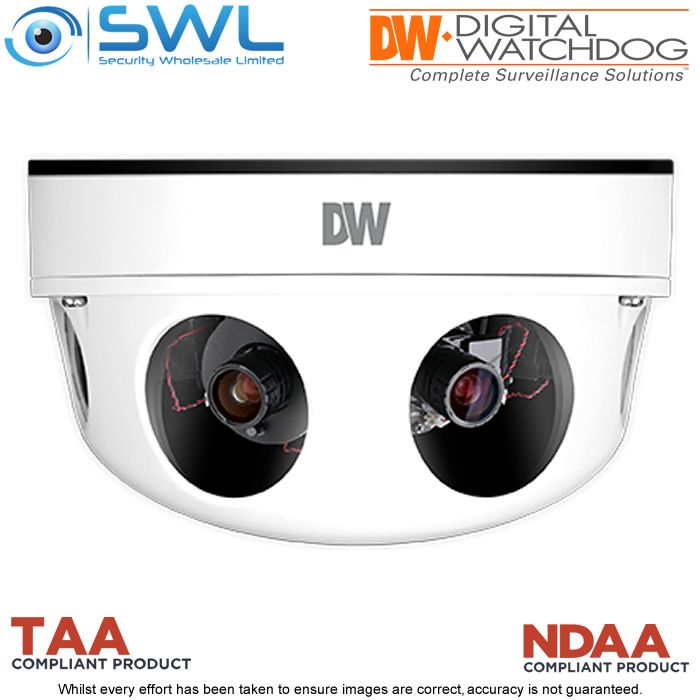

DW: DWC-PZ21M69TW 21MP MEGApix PANO™ 180° Multi-Sensor 3D DNR IP66 4x 5MP 8mm
Description
MEGApix® Pano™ 21MP Multi-Sensor 180° 4x 5.3MP 8mm
The MEGApix® Pano™ 21MP multi-sensor IP vandal camera produces 180° views at real-time 30fps. The camera supports H.264 codec and Smart DNR™ in an aluminum vandal housing with zero distortion anti-reflective glass. The 21MP camera does the work of many cameras from one installation, delivering both unprecedented wide views and details.
* Sensors - 4x 1.8." CMOS. 5.3MP each
* Lens / FOV - F1.6 8mm each, total 180° (H) & 30° (V) Field of View each
* Video Compression - H.264 & MJPEG
* Wide Dynamic Range - D-WDR. Smart DNR™
* Min Illumination - 0.16 lux (colour)
* Max IR Distance - No onboard IR - see IR illuminator in accessories
* No IVA or analytics
* Audio Input - 1 input (1.0Vms, 3K ohm), 1 output
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - Any ONVIF conformant CMS, DW Spectrum® IPVMS, Milestone.
* Storage - 4x Micro SD/SDHC/SDXC class 10 cards (card not included).
* Dimensions - 192 x 108mm
* Power - PoE Max 23.21W IR on, 12VDC 21.5W 1.79A
* Ingress Rating - IP66. Aluminium casing
* Compliance - CE, FCC, NDAA, ONVI F(S) , ROHS, UL
** High power PoE Injector is included with this Multi-sensor.
Accessories
* Junction Box: DWC-BLJUNC-W
* Wall Mount: DWC-PZWMW 61220
* Ceiling Mount: DWC-PZCMW 61230
* Pendant Mount For Custom Arm: DWC-PZHMW 61240
* Corner Mount: DWC-V1CNMW 61180
* Parapet Mount Arm: DWC-PZPARAMW 61250
* Tilting Adapter: DWC- PZADPW 61260
See specification sheet & quick install manual below.
