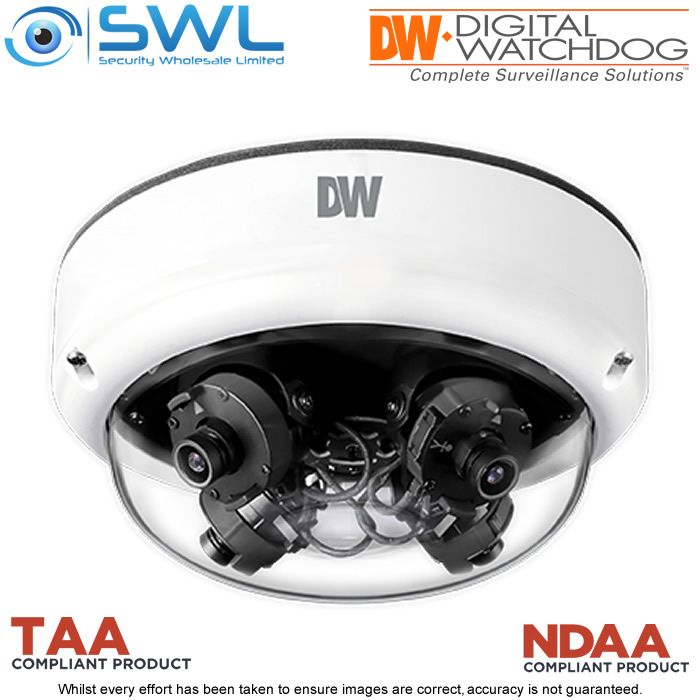

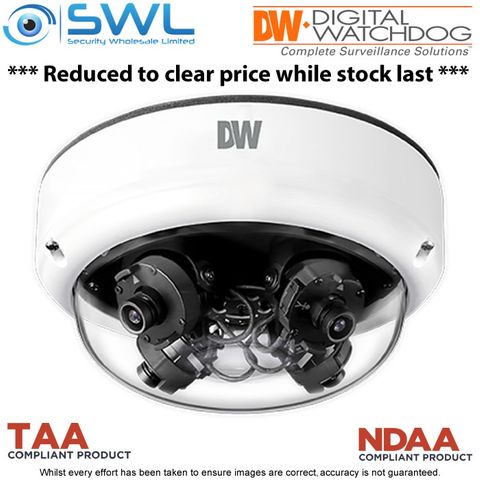

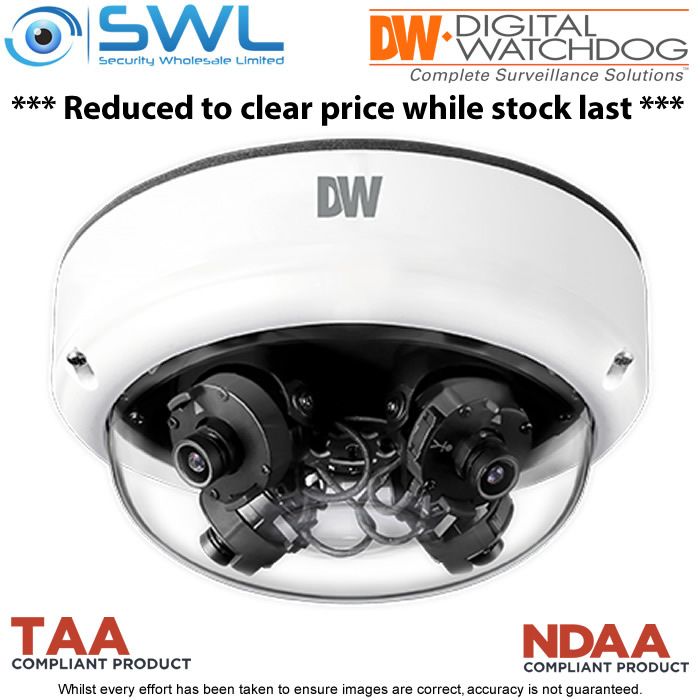

DW: DWC-PVX16W2W 16MP MEGApix Flex 360° Multi-Sensor WDR IP66 4x 4MP 2.8mm
Description
MEGApix® Flex™ 16MP Multi-Sensor 360° 4x 4MP 2.8mm
The MEGApix® Flex 16MP multi-sensor IP vandal camera produces 360° views (4x 90°) at real-time 30fps. The camera supports H.264 codec and Smart DNR™ in an aluminum vandal housing with zero distortion anti-reflective glass. The 16MP camera does the work of many cameras from one installation, delivering both unprecedented wide views and details.
* Sensors - 4x 1/3." CMOS. 4MP each
* Lens / FOV - F1.6 8mm each, total 360° (H) & 30° (V) Field of View each
* Video Compression - H.264 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Noise Reduction - Smart DNR™ - 3D Digital Noise Reduction
* Min Illumination - 0.41 lux (colour)
* Max IR Distance - No onboard IR - see IR illuminator in accessories
* Images - Supports 360° & 180° panoramic views
* No IVA or advanced analytics
* Audio Input - 1 input, 1 output
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - Any ONVIF conformant CMS, DW Spectrum® IPVMS, Milestone.
* Storage - 4x Micro SD/SDHC/SDXC class 10 cards (card not included).
* Dimensions - 192 x 84mm
* Power - PoE Max 18.0W, 12VDC 21.5W 1.79A
* Ingress Rating - IP66. Aluminium casing
* Compliance - CE, FCC, NDAA, ONVI F(S) , ROHS, UL
** High power PoE Injector is included with this Multi-sensor.
Accessories
* Junction Box: DWC-BLJUNC-W 61290
* Wall Mount: DWC-PZWMW 61220
* Ceiling Mount: DWC-PZCMW 61230
* Pendant Mount For Custom Arm: DWC-PZHMW 61310
* Pole Mount Bracket: DWC-PMB-WLW 61140
* Parapet Mount Arm: DWC-PZPARAMW 61250
* Tilting Adapter: DWC- PZADPW 61260
See specification sheet & quick install manual below.
