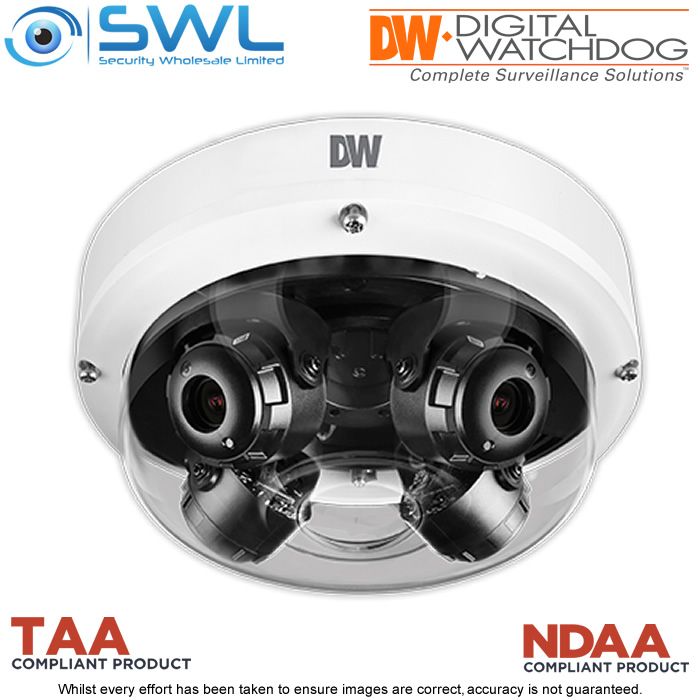

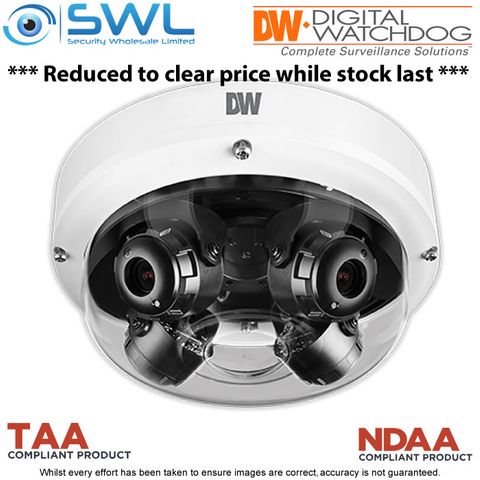

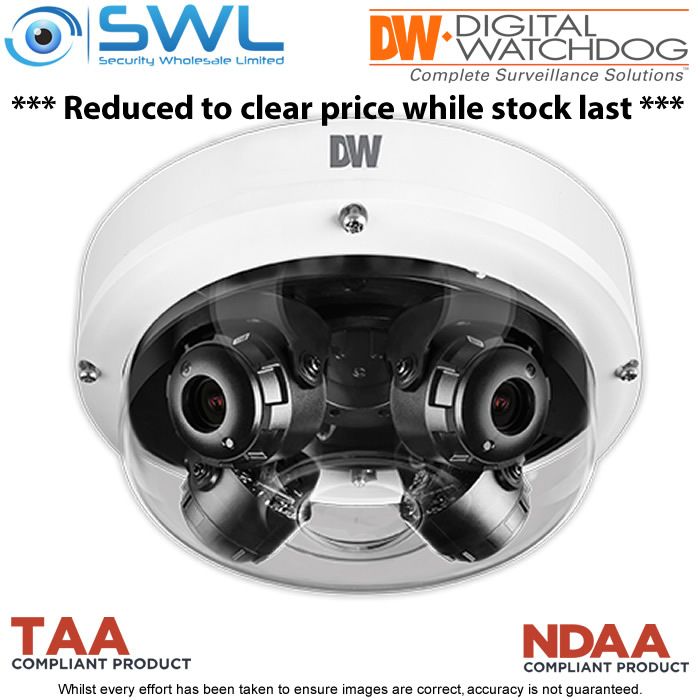

DW: DWC-PVX20WATW 20MP MEGApix IVA 360° Multi-Sensor WDR IP67 IK10 2.8-8.0mm
Description
MEGApix® 20MP 360° Multi-Sensor with IVA 4x 5MP 2.8 - 8.0mm
The MEGApix® 20MP multi-sensor IP vandal camera produces 360° views (4x 90°) at real-time 30fps. The camera supports H.265 codec, Star-light Plus, in an aluminum vandal housing with zero distortion anti-reflective glass. Pre-loaded with IVA, this 20MP camera does the work of many cameras from one installation, delivering both unprecedented wide views and details.
* Sensors - 4x 1/2.83" CMOS. 5MP each
* Lens / FOV - F1.6 2.8mm - 8mm each. 51-93 (H), 39-68 (V) FOV. Moto zoom / lens
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Noise Reduction - Smart DNR™ - 3D Digital Noise Reduction
* Min Illumination - 0.1 lux (B/W), 0.05 lux (colour). Star-light Plus capability.
* Max IR Distance - No onboard IR - see IR illuminator in accessories
* Images - Supports 360° & 180° panoramic views
* IVA - Intrusion, line crossing, counting line, loitering, enter, exit, tamper
* Audio Input - 1 input, 1 output
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - Any ONVIF conformant CMS, DW Spectrum® IPVMS, Milestone
* Storage - 4x Micro SD/SDHC/SDXC class 10 cards (card not included).
* Dimensions - 192 x 84mm
* Power - PoE Max 31.0W**, 12VDC 28W
* Ingress Rating - IP67. IK10 impact resistant Aluminium casing
* Compliance - CE, FCC, NDAA, ONVI F(S) , ROHS, UL, TAA
** High power PoE Injector is included with this Multi-sensor.
Accessories
* Ceiling Mount: DWC-PV20CMW 61300
* In Ceiling Flush Mount Adapter: DWV-PV20FMW 61280
* Junction Box: DWC-PV20JUNCW 61270
* Wall Mount: DWC-PV20MWM 61290
* Pendant Mount For Custom Arm: DWC-PZHMW 61310
* Pole Mount Bracket: DWC-PMB-WLW 61140
* Parapet Mount Arm: DWC-PZPARAMW 61250
* Tilting Adapter: DWC- PZADPW 61260
See specification sheet & quick install manual below.
