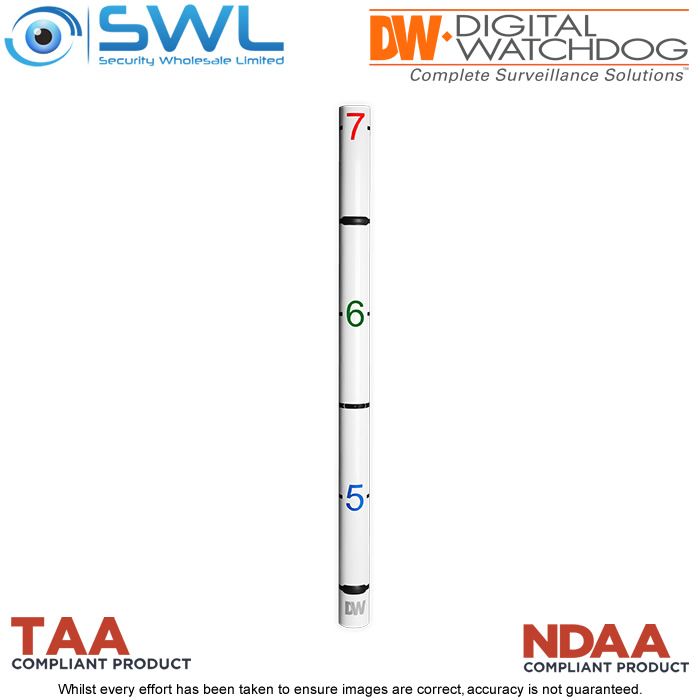

DW: DWC-MHS5W37T 5MP MEGApix IVA Retail Height Strip Camera 3.7mm
Description
MEGApix™ 5MP Height Strip Camera 3.7mm - Retail Applications
This NDAA-compliant MEGApix® height strip IP camera is your gateway to powerful and accurate identification, capturing eyelevel real-time 30fps 5MP images.With a 3.7mm wide-angle lens, Star-Light Plus™ color in near-total darkness technology and wide dynamic range, the camera delivers high-definition images in any lighting conditions. The height strip IP camera is a costeffective option for inventory shrink control, loss prevention and crime deterrence. All MEGApix® cameras are ONVIF conformant,
assuring their successful integration with any open platform solution on the market.
* Sensor/ 1.28" CMOS. 5MP
* Lens / FOV - 3.7mm, F25,.87.6° (H) & 61.6° (V) FOV
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Min Illumination - 0.263lux (colour) Star-Light Pllus™
* IR - No onboard IR - for retail daytime applications.
* IVA - Intrusion, line crossing, counting line, loitering, enter, exit, tamper
* Audio Input - 1 input (1.0Vms, 3K ohm), 1 output
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - DWSpectrum, IPVMS, any ONVIF conformant CMS
* Storage - Micro SD/SDHC/SDXC class 10 card (card not included)
* Dimensions - 47 x 37 x 860mm
* Power - PoE Max 4.8W , 12VDC 4W
* Ingress - Aluminium metal sheet height strip housing for indoor use.
* Compliance - CE, FC, NDAA, ONVIF, UL
See specification sheet and quick install manual below.
