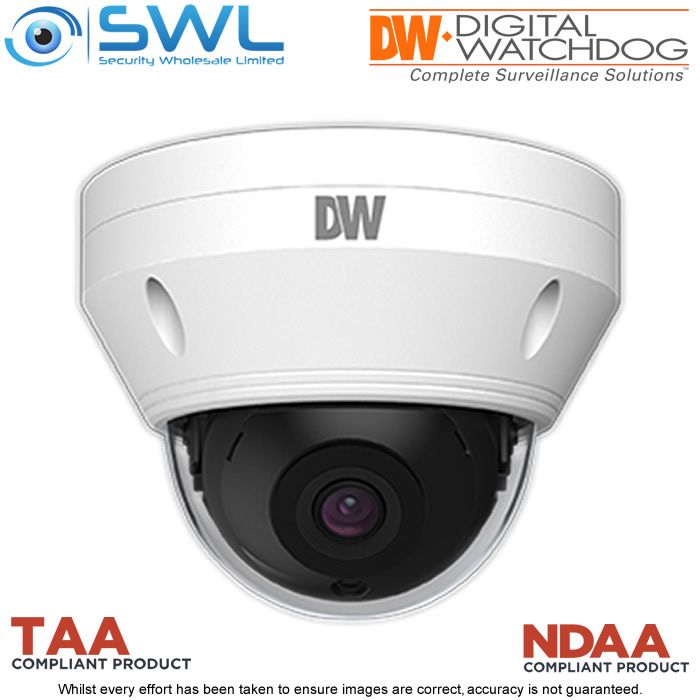

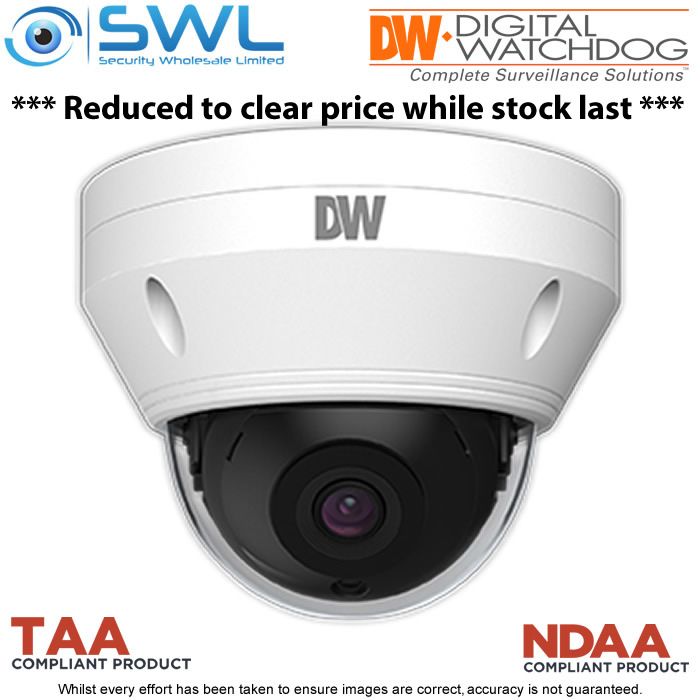

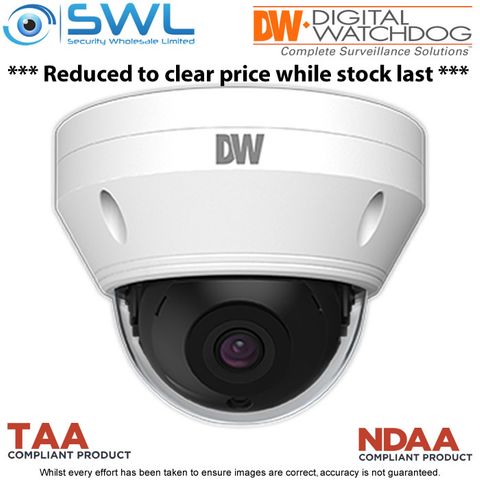

DW: DWC-VSDG04Bi MEGApix-V Series 4MP Dome WDR IR30m IP67 IK10 2.8mm
Description
This MEGApix® V-Series Dome is NDAA compliant and delivers crystalclear images at 4MP resolution and real-time 30fps. The vandal dome features a 2.8mm fixed lens in an IP67-rated, IK10 impact-resistant housing. Added intelligence includes line crossing, perimeter intrusion and video tampering detection. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
* Sensor/ 1/2.7" CMOS. 4MP @ 30fps
* Lens / FOV - F1.6 2.8mm, 94° (H) FOV
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Min Illumination - 0.00 lux (B/W), 0.005 lux (colour)
* Max IR Distance - 30m, Smart IR
* Ai Analytics - Line Crossing, Intrusion, Video Tamper, Video Blur, Abnormal Colour
* Audio Input - 1 built-in Mic and 1 input
* Audio Compression - G.711 / U
* Interoperability - DW Spectrum IPVMS
* Compatibility - ONVIF Profile S
* Storage - Micro SD/SDHC/SDXC Class 10 card up to 256GB (card not included)
* Dimensions - 116.6 x 90mm
* Power - PoE Max <4.5W IR on, DC12V
* Ingress Rating - IP67. IK10 Aluminium casing
* Compliance - FCC, CE, ROHS, NDAA, ONVIF, UL
Brackets
* Junction Box: DWC-MV9JUNC 61010
* Ceiling Mount: DWC-MV9CMJ 61020
* Wall Mount: DWC-MTTWM 61030
See specification sheet and 'manual' below for further information.
