DW: DWC-XPZA03Mi 3MP MEGApix® PTZ™ WDR 40x Zoom IR350m IP66 IK10 6.5-260mm
Description

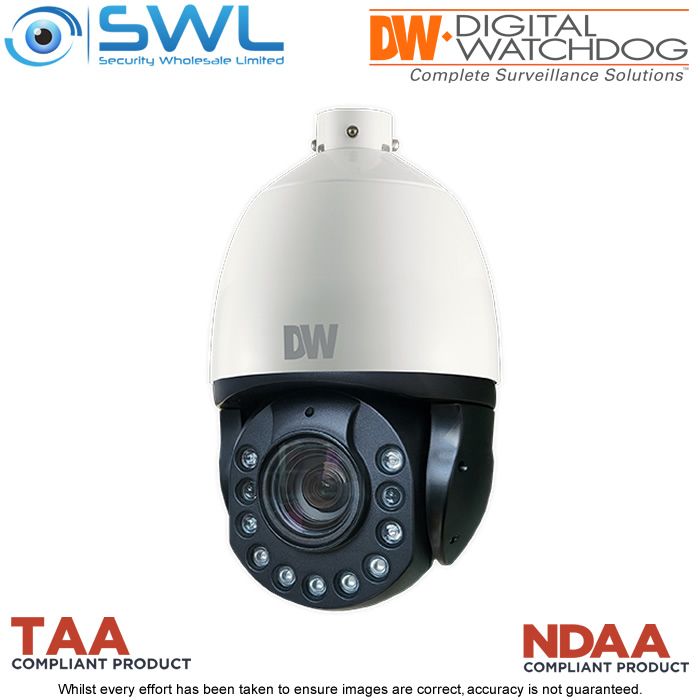

DWC-XPZA03Mi 3MP MEGApix® PTZ™ 40x Zoom
This NDAA/TAA-compliant MEGApix® pan, tilt, zoom (PTZ) IP camera provides 3MP resolution at 60fps with 40x optical zoom. The camera offers delicate and precise control and movement, with endless 0~360° panning, 500 presets, multiple patterns and swing configurations, auto parking and auto-tracking, all controllable from the camera’s web interface or directly via RS485 connection. The weather-resistant IP66-rated, IK10 impact-resistant camera features 350m range Smart IR™, Star-Light Plus™ color in near-total darkness technology and true WDR for quality video in any lighting conditions. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
* Sensor/ 1/1.18" CMOS. 3MP
* Lens / FOV - 6.5- 260mm, F1.4. (H ) 64.1°-1.6°.(V) 33.4° - 0.83° Auto focus/ moto zoom
* Zoom - 16x digital zoom, 40x optical zoom
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Min Illumination - 0.0 lux (B/W) 0.005 lux (colour) Star-Light Plus™
* Max IR Distance - 350m, Smart IR™
* IVA - Intrusion, line crossing, counting line, loitering, enter, exit, tamper
* Audio Input - 1 input (1.0Vms, 3K ohm), 1 output
* Audio Compression - G.711
* Alarms - 4 inputs, 2 outputs
* ONVIF Compatibility - Profile G, S, T & M
* Interoperability - DWSpectrum, IPVMS, any ONVIF conformant CMS
* Storage - Micro SD/SDHC/SDXC class 10 card (card not included)
* Dimensions - 226mm x 364mm
* Power - **PoE 75W, 1.36A
* Ingress - IIP66, IK10 impact resistant.
* Compliance - CE, FC, NDAA, ONVIF, UL
** High power PoE Injector included with PTZ.
Brackets
* Wall Mount: DWC-XPZAWM 61320
* Ceiling Mount: DWCXPZACM 61330
* Pole Mount: DWC-XPZ-APLM 61340
* Parapet Mount: DWC-PZPARAMW2 61350
* Tilting Adapter For Parapet Mount: DWC-PZADPW 61260
See specification sheet and quick install manual below.
