DW: DWC-XPZA08Mi 8MP MEGApix® PTZ™ WDR 40x Zoom IR350m IP66 IK10 6.5-260mm
Description

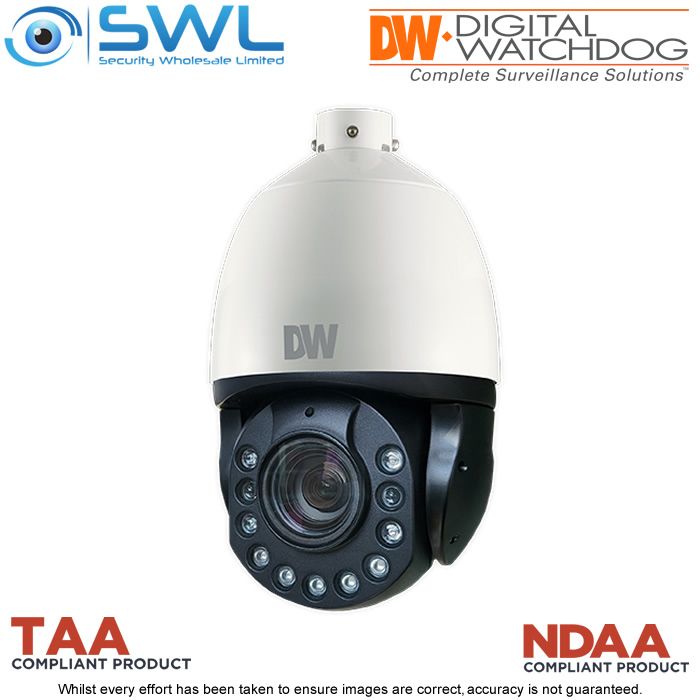

DWC-XPZA08Mi 8MP (4K) MEGApix® PTZ™ 40x Zoom
This NDAA/TAA-compliant MEGApix® pan, tilt, zoom (PTZ) IP camera provides 4K resolution at real-time 30fps with 40x optical zoom. The camera offers delicate and precise control and movement, with endless 0~360° panning, 500 presets, multiple patterns and swing configurations, auto parking and auto-tracking, all controllable from the camera’s web interface or directly via RS485 connection. This camera features 350m range Smart IR™, Star-Light Plus™ color in near-total darkness technology
and true WDR for quality video in any lighting conditions. The weatherresistant IP66-rated, IK10 impact-resistant, high-speed PTZ camera gives users clear zoom, instant movement and intelligence. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
* Sensor/ 1/1.8" CMOS. 8MP (4K)
* Lens / FOV - 6.5- 260mm, F1.4. (H) 64.1°-1.6°.(V) 38.1° - 0.95° Auto focus/ moto zoom
* Zoom - 16x digital zoom, 40x optical zoom
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Min Illumination - 0.0 lux (B/W) 0.005 lux (colour) Star-Light Plus™
* Max IR Distance - 350m, Smart IR™ - no IR reflection
* Auto parking and auto-tracking
* Audio Input - 1 input (1.0Vms, 3K ohm), 1 output
* Audio Compression - G.711
* Alarms - 4 inputs, 2 outputs
* ONVIF Compatibility - Profile G, S, T & M
* Interoperability - DWSpectrum, IPVMS, any ONVIF conformant CMS
* Storage - Micro SD/SDHC/SDXC class 10 card (card not included)
* Dimensions - 226mm x 364mm
* Power - **PoE 75W, 1.36A
* Ingress - IIP66, IK10 impact resistant.
* Compliance - CE, FC, NDAA, ONVIF, TAA
** High power PoE Injector included with PTZ.
Brackets
* Wall Mount: DWC-XPZAWM 61320
* Ceiling Mount: DWCXPZACM 61330
* Pole Mount: DWC-XPZ-APLM 61340
* Parapet Mount: DWC-PZPARAMW2 61350
* Tilting Adapter For Parapet Mount: DWC-PZADPW 61260
See specification sheet and quick install manual below.
