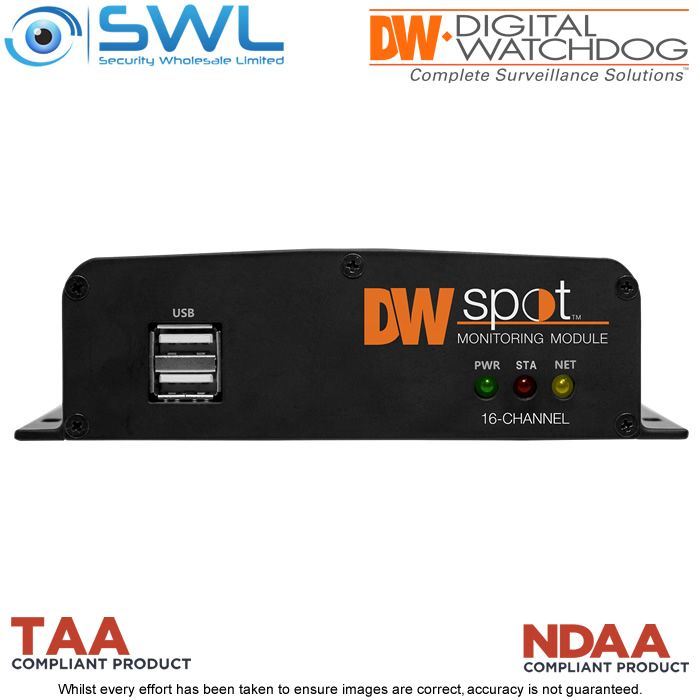

DW: DW-HDSPOTMOD16 16 Channel Spot Monitor For VMAX NVR/ 8MP H.264 4K 80Mbps
Description
This DW® Spot™ monitoring module is NDAA/TAA compliant allowing you to view video from up to sixteen 4K cameras without connecting to them through a PC or server. The DW-HDSPOTMOD16 is easy to use, automatically searching the network and identifying an unlimited number of ONVIF conformant IP cameras, UHDoC® VMAX® A1™ DVRs (via RTSP) or VMAX® IP Plus™ NVRs for local monitoring at up to 4K resolution output. DW® Spot™ monitoring modules are ideal for retail and office environments.
* Supports up to 16 channels of 4K cameras, max. 80 Mbps throughout
* Dimensions - 139 x 123 x 32mm
* Power - DC12v 1A
* Automatic network search and device registration
* Identifies an unlimited number of ONVIF conformant IP cameras and VMAX® IP G4™ NVRs
* Live monitoring of up to 4 cameras, single & quad-camera view & camera sequencing
* Up to 120fps display
* Drag and drop camera selection from DVRs and NVRs
* Remote configuration via the Internet
* 4K (3840 x 2160) true HD & VGA video outputs
* USB mouse included
* Velcro for easy mounting to the back of a monitor
* NDAA/TAA compliant
NOTE: The DW-HDSPOTMOD only supports H.264 format from cameras.
To change the settings, connect to the camera's web client and change the camera's output setting before adding it to the Spot Monitoring Module, 4 channels, IP cameras (up to 4K, 3840 x 2160 resolution).
See specification sheet and manual below for more information.
